Features:

• 140 MHz Typ. Clock
• Outputs Source/Sink 24 mA
• Operating Voltage Range: 2.0 to 6.0 V
• High Noise Immunity


Pinout

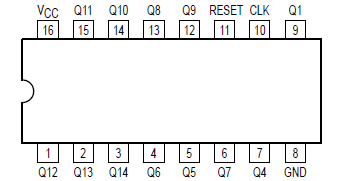

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
PD
 Power Dissipation in Still Air
Plastic**
SOIC Package**
750
500
mW
Tstg
 Storage Temperature
65 to +150
TL
 Lead Temperature, 1 mm from Case for 10 seconds
(Plastic DIP or SOIC Package)
260
* Maximum Ratings are those values beyond which damage to the device may occur.
** Derating: Plastic DIP: 10mW from 65C to 125
                   SOIC Package: 7.0 mW from 65 to 125


Description

The MC74AC4020 consists of 14 master-slave flip-flops with 12 stages brought out to pins. The output of each flip-flop feeds the next and the frequency at each output is half that of the preceding one. The state of the counter advances on the negative-going edge of the Clock input. Reset is asynchronous and active-high.

State changes of the Q outputs do not occur simultaneously because of internal ripple delays. Therefore, decoded output signals are subject to decoding spikes and may have to be gated with the Clock of the MC74AC4020 for some designs
