MC74AC377

Features: • Ideal for Addressable Register Applications• Clock Enable for Address and Data Synchronization Applications• Eight Edge-Triggered D Flip-Flops• Buffered Common Clock• Outputs Source/Sink 24 mA• See MC74AC273 for Master Reset Version• See MC74AC...

product image

MC74AC377 Picture
See larger image
SeekIC No. : 004416669 Detail

MC74AC377: Features: • Ideal for Addressable Register Applications• Clock Enable for Address and Data Synchronization Applications• Eight Edge-Triggered D Flip-Flops• Buffered Common Cl...

MC74AC377 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC377
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ideal for Addressable Register Applications
• Clock Enable for Address and Data Synchronization Applications
• Eight Edge-Triggered D Flip-Flops
• Buffered Common Clock
• Outputs Source/Sink 24 mA
• See MC74AC273 for Master Reset Version
• See MC74AC373 for Transparent Latch Version
• See MC74AC374 for 3-State Version
• 'ACT377 Has TTL Compatible Inputs


Pinout

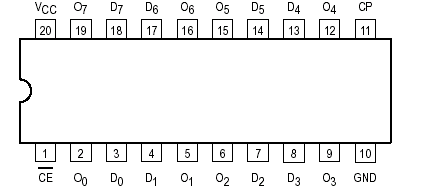

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.


Description

The MC74AC377/74ACT377 has eight edge-triggered, D-type flip-flops with individual D inputs and Q outputs. The common buffered Clock (CP) input loads all flip-flops simultaneously, when the Clock Enable (CE) is LOW.

The register MC74AC377 is fully edge-triggered. The state of each D input, one setup time before the LOW-to-HIGH clock transition, is transferred to the corresponding flipflop's Q output. The CE input must be stable only one setup time prior to the LOW-to-HIGH clock transition for predictable operation.
