Product Details

Description

Features:

• Inverted Version of the MC74AC253/74ACT253
• Multifunction Capability
• Separate Enables for Each Multiplexer
• Outputs Source/Sink 24 mA
• 'ACT353 Has TTL Compatible Inputs

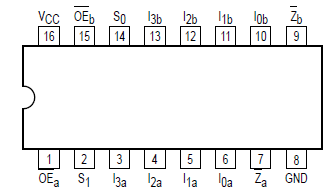

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
T_stg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC353/74ACT353 is a dual 4-input multiplexer with 3-state outputs. MC74AC353 can select two bits of data from four sources using common Select inputs. The outputs may be individually switched to a high impedance state with a HIGH on the respective Output Enable (OE ) inputs, allowing the outputs to interface directly with bus-oriented systems.
