Features:

• Common Parallel I/O for Reduced Pin Count
• Additional Serial Inputs and Outputs for Expansion
• Four Operating Modes: Shift Left, Shift Right, Load and Store
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT323 Has TTL Compatible Inputs

Pinout

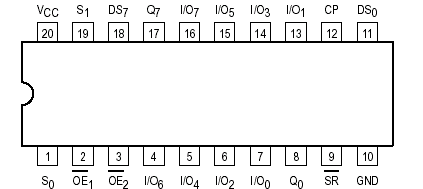

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
T_stg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC323/74ACT323 is an 8-bit universal shift/storage register with 3-state outputs. Its function is similar to the MC74AC299/74ACT299 with the exception of Synchronous Reset. Parallel load inputs and flip-flop outputs are multiplexed to minimize pin count. Separate serial inputs and outputs are provided for Q₀ and Q₇ to allow easy cascading. Four operation modes are possible: hold (store), shift left, shift right and parallel load.
