MC74AC299

Features: • Common Parallel I/O for Reduced Pin Count• Additional Serial Inputs and Outputs for Expansion• Four Operating Modes: Shift Left, Shift Right, Load and Store• 3-State Outputs for Bus-Oriented Applications• Outputs Source/Sink 24 mA• 'ACT299 Has TTL Co...

product image

MC74AC299 Picture
See larger image
SeekIC No. : 004416660 Detail

MC74AC299: Features: • Common Parallel I/O for Reduced Pin Count• Additional Serial Inputs and Outputs for Expansion• Four Operating Modes: Shift Left, Shift Right, Load and Store• 3-St...

MC74AC299 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC299
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Common Parallel I/O for Reduced Pin Count
• Additional Serial Inputs and Outputs for Expansion
• Four Operating Modes: Shift Left, Shift Right, Load and Store
• 3-State Outputs for Bus-Oriented Applications
• Outputs Source/Sink 24 mA
• 'ACT299 Has TTL Compatible Inputs


Pinout

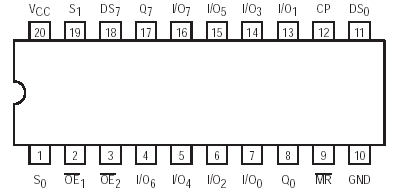

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
  should be restricted to the Recommended Operating Conditions.


Description

The MC74AC299/74ACT299 is an 8-bit universal shift/storage register with 3-state outputs. Four modes of operation are possible: hold (store), shift left, shift right and load data. The parallel load inputs of MC74AC299 and flip-flop outputs are multiplexed to reduce the total number of package pins. Additional outputs are provided for flip-flops Q0, Q7 to allow easy serial cascading. A separate active LOW Master Reset is used to reset the register.
