Product Details

Description

Features:

• Outputs Source/Sink 24 mA
• 'ACT151 Has TTL Compatible Inputs

Pinout

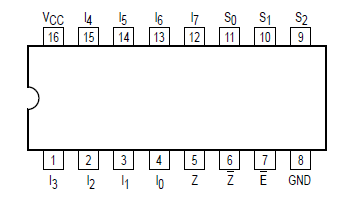

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to +7.0	V
V_in	DC Input Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC +0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Sink/Source Current, per Pin	±50	mA
I_CC	DC V_CC or GND Current per Output Pin	±50	mA
Tstg	Storage Temperature	65 to +150

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
should be restricted to the Recommended Operating Conditions.

Description

The MC74AC151/74ACT151 is a high-speed 8-input digital multiplexer. It provides, in one package, the ability to select one line of data from up to eight sources. The MC74AC151/74ACT151 can be used as a universal function generator to generate any logic function of four variables. Both true and complementary outputs are provided.
