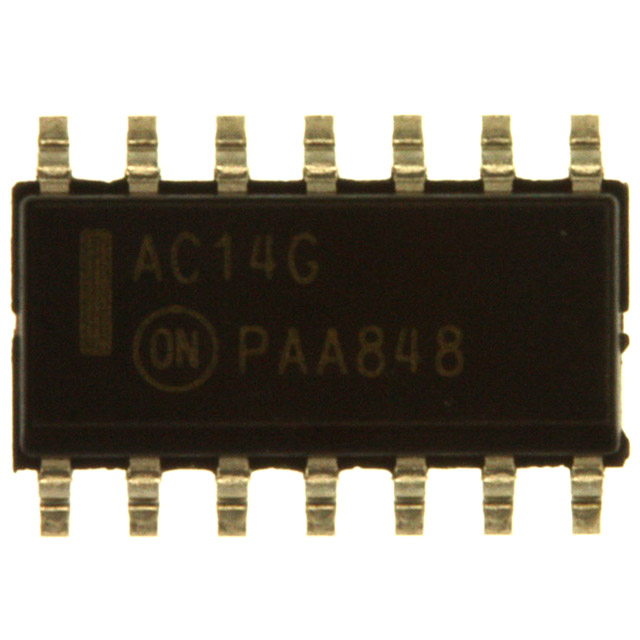

MC74AC14MEL

Propagation Delay Time :
Minimum Operating Temperature :
Operating Temperature Range :
Packaging : Reel
Maximum Operating Temperature : + 85 C
Number of Circuits : 6
Logic Type : CMOS
Supply Voltage - Max : 6 V
Supply Voltage - Min : 2 V
High Level Output Current : - 24 mA
Low Level Output Current : 24 mA
Logic Family : 74AC
Package / Case : SOEIAJ-14


Parameters:

Technical/Catalog Information	MC74AC14MEL
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-SOIC (5.3mm Width), 14-SOP, 14-SOIJ
Logic Type	Inverter with Schmitt Trigger
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	24mA, 24mA
Supply Voltage	2 V ~ 6 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 6 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC74AC14MEL MC74AC14MEL
