MC74AC109

Features: • Outputs Source/Sink 24 mA• 'ACT109 Has TTL Compatible InputsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V Vin DC Input Voltage (Referenced to GND) 0.5 to VCC +0.5 V Vout ...

product image

MC74AC109 Picture
See larger image
SeekIC No. : 004416625 Detail

MC74AC109: Features: • Outputs Source/Sink 24 mA• 'ACT109 Has TTL Compatible InputsPinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) ...

MC74AC109 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74AC109
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Outputs Source/Sink 24 mA
• 'ACT109 Has TTL Compatible Inputs


Pinout

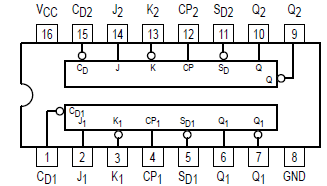

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 DC Supply Voltage (Referenced to GND)
0.5 to +7.0
V
Vin
 DC Input Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Vout
 DC Output Voltage (Referenced to GND)
0.5 to VCC +0.5
V
Iin
 DC Input Current, per Pin
±20
mA
Iout
 DC Output Sink/Source Current, per Pin
±50
mA
ICC
 DC VCC or GND Current per Output Pin
±50
mA
Tstg
 Storage Temperature
65 to +150
* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation
   should be restricted to the Recommended Operating Conditions.


Description

The MC74AC109/74ACT109 consists of two high-speed completely independent transition clocked JK flip-flops. The clocking operation is independent of rise and fall times of the clock waveform. The JK MC74AC109 design allows operation as a D flip-flop (refer to MC74AC74/74ACT74 data sheet) by connecting the J and K inputs together.

Asynchronous Inputs:
LOW input to S D (Set) sets Q to HIGH level
LOW input to C D (Clear) sets Q to LOW level
Clear and Set are independent of clock
Simultaneous LOW on C D and S D makes both Q and Q HIGH
