MC68HC908JW32

Features: • High-performance M68HC08 architecture• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8-MHz internal bus frequency• 88-kHz internal RC clock for timebase wakeup• 32-Kbytes of on-chip FLASH memory with security(1)• 1-Kb...

product image

MC68HC908JW32 Picture
See larger image
SeekIC No. : 004416528 Detail

MC68HC908JW32: Features: • High-performance M68HC08 architecture• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8-MHz internal bus frequency• 88-kHz interna...

MC68HC908JW32 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC908JW32
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8-MHz internal bus frequency
• 88-kHz internal RC clock for timebase wakeup
• 32-Kbytes of on-chip FLASH memory with security(1)
• 1-Kbytes of on-chip random-access memory (RAM)
• On-chip programming firmware for use with host PC computer
• Clock generation module (CGM)
• Up to 29 general-purpose 5V input/output (I/O) pins, including:
Keyboard interrupts on 8 pins
Direct drive for normal LED on 3 pins
High current drive for PS/2 connection on 2 pins (with USB module disabled)
• Serial peripheral interface module (SPI)
• PS2 clock generator module
• 16-bit, 2-channel timer interface module (TIM) with selectable rising and falling edges input
capture, output compare, PWM capability on each channel, and external clock input option
• Full universal serial bus (USB) specification 2.0 full-speed functions:
12 Mbps data rate
On-chip 3.3V regulator
Endpoint 0 with 8-byte transmit buffer and 8-byte receive buffer
64 bytes endpoint buffer to share among endpoints 14
• System protection features:
Optional computer operating properly (COP) reset
Optional low-voltage detection with reset
Illegal opcode detection with reset
Illegal address detection with reset
• Low-power design (fully static with stop and wait modes)
• Master reset pin with internal pull-up and power-on reset
• External asynchronous interrupt pin with internal pull-up (IRQ)
• 48-pin quad flat non-leaded package (QFN)

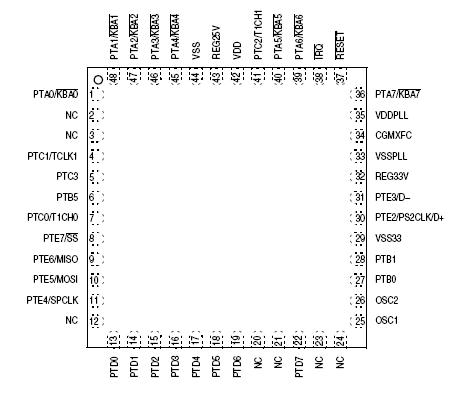

Pinout






Specifications

Characteristic Symbol Value Unit
Supply voltage VDD 0.3 to +6.0 V
Input voltage
All pins (except IRQ)
IRQ pin		 VIN VSS0.3 to VDD +0.3
VSS0.3 to 8.5		 V
Maximum current per pin excluding
VDD and VSS		 I ±25 mA
Maximum current out of VSS IMVSS 100 mA
Maximum current into VDD IMVDD 100 mA
Storage temperature TSTG 55 to +150 °C
