Features of the MC68HC908JB16 MCU include the following:
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 families
• Low-power design; fully static with stop and wait modes
• 6-MHz internal bus frequency
• 16,384 bytes of on-chip FLASH memory with security1 feature
• 384 bytes of on-chip random access memory (RAM)
• Up to 21 general-purpose input/output (I/O) pins, including:
15 shared-function I/O pins
8-bit keyboard interrupt port
10mA high current drive for PS/2 connection on 2 pins (with USB module disabled)
1 dedicated I/O pin, with 25mA direct drive for infrared LED (32-pin package)
6 dedicated I/O pins, with 25mA direct drive for infrared LED on 2 pins and 10mA direct drive for normal LED on 4 pins (28-pin package)
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture, output compare, PWM capability on each channel, and external clock input option (TCLK)
• Universal Serial Bus specification 2.0 low-speed functions:
1.5Mbps data rate
On-chip 3.3V regulator
Endpoint 0 with 8-byte transmit buffer and 8-byte receive buffer
Endpoint 1 with 8-byte transmit buffer
Endpoint 2 with 8-byte transmit buffer and 8-byte receive buffer
• Serial communications interface module (SCI)
• Dual clock generator modules (CGM) (32-pin package)
• In-circuit programming capability using USB communication or standard serial link on PTA0 pin
• System protection features:
Optional computer operating properly (COP) reset
Optional Low-voltage detection with reset
Illegal opcode detection with reset
Illegal address detection with reset
• Master reset pin with internal pull-up and power-on reset
• IRQ interrupt pin with internal pull-up and schmitt-trigger input

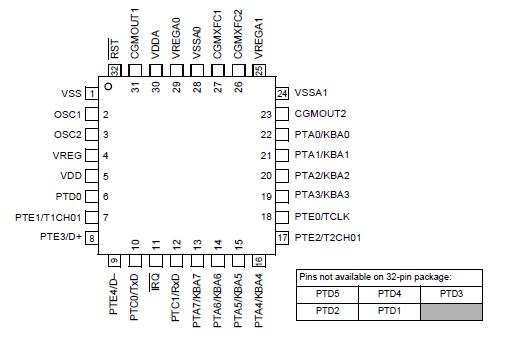

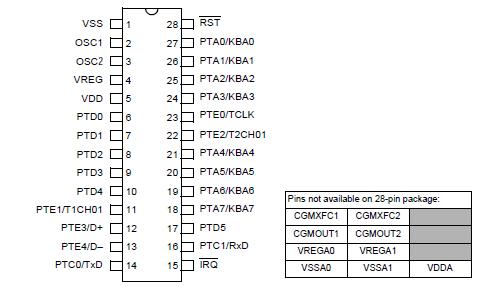

• 32-pin low-profile quad flat pack (LQFP) and 28-pin small outline integrated circuit package (SOIC)
Features of the CPU08 include the following:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Third party C language support
Characteristic(1) | Symbol | Value | Unit |
Supply voltage | VDD | 0.3 to +6.0 | V |
Input voltage PTE4/D, PTE3/D+ Others |
VIN | VSS 1.0 to VDD+0.3 VSS 0.3 to VDD+0.3 |
V |
Mode entry voltage, IRQ pin | VTST | VSS0.3 to +8 | V |
Maximum current per pin excluding VDD and VSS |
I | ± 25 | mA |
Storage temperature | TSTG | 55 to +150 | °C |
Maximum current out of VSS/VSS | IMVSS | 100 | mA |
Maximum current into VDD/VDDA | IMVDD | 100 | mA |
