MC68HC908GR8A

Features: • Standard features• Features of the CPU08• High-performance M68HC08 architecture optimized for C-compilers• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8-MHz internal bus frequency• Clock generation module supporting...

product image

MC68HC908GR8A Picture
See larger image
SeekIC No. : 004416513 Detail

MC68HC908GR8A: Features: • Standard features• Features of the CPU08• High-performance M68HC08 architecture optimized for C-compilers• Fully upward-compatible object code with M6805, M146805...

MC68HC908GR8A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC908GR8A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Standard features
• Features of the CPU08
• High-performance M68HC08 architecture optimized for C-compilers
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8-MHz internal bus frequency
• Clock generation module supporting 1-MHz to 8-MHz crystals
• FLASH program memory security(1)
• On-chip programming firmware for use with host personal computer which does not require high
   voltage for entry
• In-system programming (ISP)
• System protection features:
Optional computer operating properly (COP) reset
Low-voltage detection with optional reset and selectable trip points for 3.0-V and 5.0-V
   operation
Illegal opcode detection with reset
Illegal address detection with reset
• Low-power design; fully static with stop and wait modes
• Standard low-power modes of operation:
Wait mode
Stop mode
• Master reset pin and power-on reset (POR)
• 7680 bytes of on-chip FLASH memory on the MC68HC908GR8A and 4096 byes of on-chip FLASH
   memory on the MC68HC908GR4A with in-circuit programming capabilities of FLASH program
   memory.
• 384 bytes of on-chip random-access memory (RAM)
• 544 bytes of FLASH programming routines read-only memory (ROM)
• Serial peripheral interface (SPI) module
• Serial communications interface (SCI) module
• One 16-bit, 2-channel timer (TIM1) and one 16-bit, 1-channel timer (TIM2) interface modules with
   selectable input capture, output compare, and pulse-width modulation (PWM) capability on each
   channel
• Up to 6-channel, 8-bit successive approximation analog-to-digital converter (ADC) depending on
   package choice
• BREAK (BRK) module to allow single breakpoint setting during in-circuit debugging
• Internal pullups on IRQ and RST to reduce system cost
• Up to 21 general-purpose input/output (I/O) pins
• Selectable pullups on inputs only on ports A, C, and D. Selection is on an individual port bit basis.
   During output mode, pullups are disengaged.
• High current 10-mA sink/source capability on all port pins
• Higher current 15-mA sink/source capability on PTC0PTC1
• Timebase module (TBM) with clock prescaler circuitry for eight user selectable periodic real-time
   interrupts with optional active clock source during stop mode for periodic wakeup from stop using
   an external crystal
• User selection of having the oscillator enabled or disabled during stop mode
• 4-bit keyboard wakeup port
• Available packages:
32-pin low-profile quad flat pack (LQFP)
28-pin plastic dual in-line package (DIP)
28-pin small outline integrated circuit (SOIC)
• Specific features of the MC68HC908GR8A in 28-pin DIP and 28-pin SOIC are:
Port B is only 4 bits: PTB0PTB3; 4-channel ADC module
No port C bits
Features of the CPU08 include:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support


Pinout

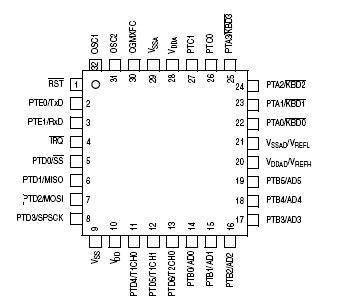

Connection Diagram


Specifications

Characteristic Symbol Value Unit
Supply voltage VDD 0.3 to +6.0 V
Input voltage VIN VSS0.3 to VDD +0.3
 V
Maximum current per pin excluding VDD, VSS, and PTC0PTC I ± 15 mA
Maximum current for pins PTC0PTC1 IPTC0PTC1 ±25 mA
Storage temperature Imvdd 55 to +150 °C
Maximum current out of VSS IMVSS 150 mA
Maximum current into VDD IMVDD 150 mA
