MC68HC908GR16

Features: •For convenience, features have been organized to reflect:• Standard features of the MC68HC908GR16• Features of the CPU08• High-performance M68HC08 architecture optimized for C-compilers• Fully upward-compatible object code with M6805, M146805, and M68HC05 F...

product image

MC68HC908GR16 Picture
See larger image
SeekIC No. : 004416504 Detail

MC68HC908GR16: Features: •For convenience, features have been organized to reflect:• Standard features of the MC68HC908GR16• Features of the CPU08• High-performance M68HC08 architecture opt...

MC68HC908GR16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC908GR16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•For convenience, features have been organized to reflect:
• Standard features of the MC68HC908GR16
• Features of the CPU08
• High-performance M68HC08 architecture optimized for C-compilers
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8-MHz internal bus frequency
• Clock generation module supporting 32-kHz to 100-kHz crystals
• FLASH program memory security(1)
• On-chip programming firmware for use with host personal computer which does not require high voltage for entry
• In-system programming (ISP)
• System protection features:
  Optional computer operating properly (COP) reset
  Low-voltage detection with optional reset and selectable trip points for 3.3-V and 5.0-V operation
  Illegal opcode detection with reset
  Illegal address detection with reset


Pinout

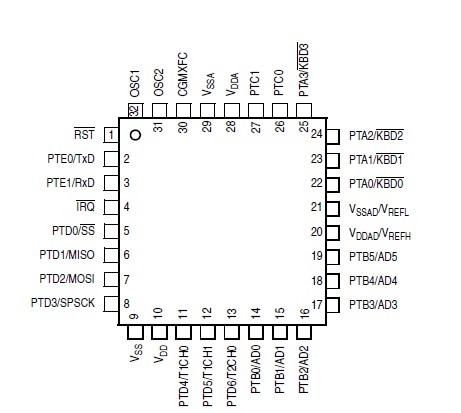

Connection Diagram


Specifications

Characteristic(1) Symbol Value Value
Supply voltage VDD 0.3 to +6.0 V
Input voltage VIn VSS 0.3 to VDD +0.3 V
Maximum current per pin
excluding those specified below		 I ±15 mA
Maximum current for pins
PTC0PTC4		 IPTC0PTC4 ±25 mA
Maximum current into VDD Imvdd 150 mA
Maximum current out of VSS Imvss 150 mA
Storage temperature TSTG 55 to +150 °C



Description

These port pins also have selectable pullups when configured for input mode. The pullups are disengaged when configured for output mode. The pullups are selectable on an individual port bit basis.
