Product Details

Description



Features:

• High-Performance M68HC08 Architecture
• Fully Upward-Compatible Object Code with M6805, M146805,
and M68HC05 Families
• 8.4 MHz Internal Bus Frequency
• 32,256 bytes of FLASH Electrically Erasable Read-Only Memory (FLASH)
• FLASH Data Security
• 512 bytes of On-Chip Electrically Erasable Programmable Read- Only Memory with Security Option (EEPROM)
• 1 Kbyte of On-Chip RAM
• Clock Generator Module (CGM)
• Serial Peripheral Interface Module (SPI)
• Serial Communications Interface Module (SCI)
• 8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15)
• 16-Bit, 6-Channel Timer Interface Module (TIMA-6)
• Programmable Interrupt Timer (PIT)
• System Protection Features
   Computer Operating Properly (COP) with Optional Reset
   Low-Voltage Detection with Optional Reset

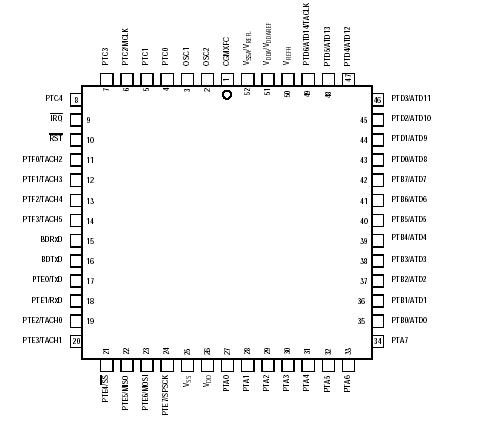

Pinout

Connection Diagram


Specifications

Rating Symbol Value Unit
Supply Voltage VDD 0.3 to +6.0 V
Input Voltage VIN VSS 0.3 to VDD +0.3 V
Maximum Current Per Pin
Excluding VDD and VSS		 I ± 25 mA
Storage Temperature TSTG 55 to +150 °C
Maximum Current out of VSS IMVSS 100 mA
Maximum Current into VDD IMVDD 100 mA
Reset and IRQ Input Voltage VHI VDD + 4.5 V
