MC68HC16Y1

Features: • CPU16- 16-Bit Architecture- Full Set of 16-Bit Instructions- Three 16-Bit Index Registers- Two 16-Bit Accumulators- Control-Oriented Digital Signal Processing Capability- 1 Megabyte of Program Memory and 1 Megabyte of Data Memory- High-Level Language Support- Fast Interrupt Respo...

product image

MC68HC16Y1 Picture
See larger image
SeekIC No. : 004416438 Detail

MC68HC16Y1: Features: • CPU16- 16-Bit Architecture- Full Set of 16-Bit Instructions- Three 16-Bit Index Registers- Two 16-Bit Accumulators- Control-Oriented Digital Signal Processing Capability- 1 Megabyt...

MC68HC16Y1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC16Y1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CPU16
- 16-Bit Architecture
- Full Set of 16-Bit Instructions
- Three 16-Bit Index Registers
- Two 16-Bit Accumulators
- Control-Oriented Digital Signal Processing Capability
- 1 Megabyte of Program Memory and 1 Megabyte of Data Memory
- High-Level Language Support
- Fast Interrupt Response Time
- Background Debugging Mode
• Single-Chip Integration Module
- Single-Chip or Expanded Modes of Operation
- External Bus Support in Expanded Mode
- Nine Programmable Chip Select Outputs
- System Protection Logic
- Watchdog Timer, Clock Monitor, and Bus Monitor
- Parallel Ports Option On Address and Data Bus in Single-Chip Mode
- PLL Clock System
• Time Processor Unit
- Dedicated Microengine Operating Independently of CPU16
- 16 Independently Programmable Channels and Pins
- Two Timer Count Registers with Programmable Prescalers
- Selectable Channel Priority Levels
• General-Purpose Timer
- Two 16-Bit Free-Running Counters with Prescaler
- Three Input Capture Channels
- Four Output Compare Channels
- One Input Capture/Output Compare Channel
- One Pulse Accumulator/Event Counter Input
- Two Pulse Width Modulation Outputs
- Optional External Clock Input
• 8/10-Bit Analog-to-Digital Converter
- Eight Channels, Eight Result Registers
- Eight Automated Modes
- Three Result Alignment Modes
• Multichannel Communication Interface
- Dual Serial Communication Interface
- Serial Peripheral Interface
• TPU Emulation RAM
- 2 Kbyte Static RAM
- External Standby Voltage Supply Input
• Masked ROM
- 48 Kbyte 16-Bit Array
- User-Selectable Default Base Address
- User-Selectable Bootstrap ROM Function
- User-Selectable ROM Verification Code


Pinout

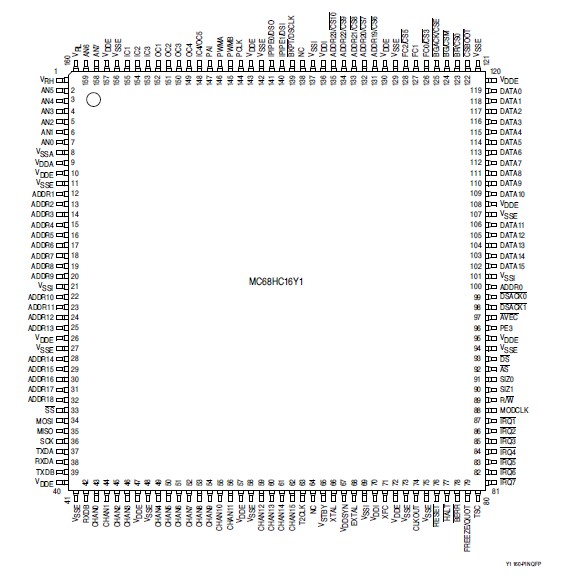

Connection Diagram
