MC68HC08QA24

Features: Features of the MC68HC08QA24 include:• High-performance M68HC08 architecture• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8.4-MHz internal bus frequency• 24,064 bytes of user read-only memory (ROM)• ROM data security(1)R...

product image

MC68HC08QA24 Picture
See larger image
SeekIC No. : 004416414 Detail

MC68HC08QA24: Features: Features of the MC68HC08QA24 include:• High-performance M68HC08 architecture• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8.4-MHz inter...

MC68HC08QA24 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC08QA24
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Features of the MC68HC08QA24 include:
• High-performance M68HC08 architecture
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8.4-MHz internal bus frequency
• 24,064 bytes of user read-only memory (ROM)
• ROM data security(1)
• 512 bytes of on-chip electrically erasable programmable read-only memory (EEPROM)
• 768 bytes of on-chip random-access memory (RAM)
• Serial peripheral interface module (SPI)
• Serial communications interface module (SCI)
• Two 16-bit, 2-channel timer interface modules (TIMA and TIMB)
• Clock generator module (CGM)
• 8-bit, 12-channel analog-to-digital converter module (ADC)
• Scalable controller area network module (MSCAN)
• System protection features:
Computer operating properly (COP) with optional reset
Low-voltage detection with optional reset
Illegal opcode detection with optional reset
Illegal address detection with optional reset
Dual CPU for error detection reset
• Low-power design (fully static with stop and wait modes)
• Master reset pin and power-on reset (POR)
Features of the CPU08 include:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• C language support


Pinout

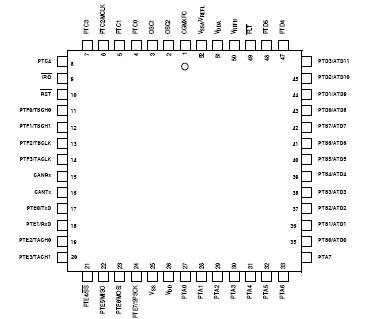

Connection Diagram


Specifications

Characteristic Symbol Value Unit
Supply Voltage VDD 0.3 to +6.0 V
Input Voltage
 Vin VSS 0.3 to VDD + 0.3
 V
Maximum current per pin
excluding VDD and VSS		 I ± 25 mA
Storage temperature Tstg 55 to +150 °C
Maximum current out of VSS IMVSS 100 mA
Maximum current into VDD IMVDD 100 mA
Reset IRQ input voltage VHI VDD to VDD + 2 °C



Description

The MC68HC08QA24 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). The M68HC08 Family is based on the customer-specified integrated circuit (CSIC) design strategy. All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
