MC68HC08GP16A

Features: • High-performance M68HC08 architecture optimized for C-compilers• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8-MHz internal bus frequency• System protection features: Optional computer operating properly (COP) reset Low-voltage...

product image

MC68HC08GP16A Picture
See larger image
SeekIC No. : 004416396 Detail

MC68HC08GP16A: Features: • High-performance M68HC08 architecture optimized for C-compilers• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families• 8-MHz internal bus frequ...

MC68HC08GP16A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC08GP16A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-performance M68HC08 architecture optimized for C-compilers
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8-MHz internal bus frequency
• System protection features:
Optional computer operating properly (COP) reset
Low-voltage detection with optional reset and selectable trip points for 3.0-V and 5.0-V operation
Illegal opcode detection with reset
Illegal address detection with reset
• Low-power design; fully static with stop and wait modes
• Standard low-power modes of operation:
Wait mode
Stop mode
• Master reset pin and power-on reset (POR)
• On-chip read-only memory (ROM)
MC68HC08GP32A - 32,256 bytes
MC68HC08GP16A - 15,872 bytes
• 512 bytes of on-chip random-access memory (RAM)
• Serial peripheral interface module (SPI)
• Serial communications interface module (SCI)
• Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,
  output compare, and PWM capability on each channel
• 8-channel, 8-bit successive approximation analog-to-digital converter (ADC)
• BREAK module (BRK) to allow single breakpoint setting during in-circuit debugging
• Internal pullups on IRQ and RST to reduce customer system cost
• Clock generator module with on-chip 32-kHz crystal compatible PLL (phase-lock loop)
• Up to 33 general-purpose input/output (I/O) pins, including:
26 shared-function I/O pins
Five or seven dedicated I/O pins, depending on package choice
• Selectable pullups on inputs only on ports A, C, and D. Selection is on an individual port bit basis.
  During output mode, pullups are disengaged.
• High current 10-mA sink/10-mA source capability on all port pins
• Higher current 15-mA sink/source capability on PTC0PTC4
• Timebase module with clock prescaler circuitry for eight user selectable periodic real-time
  interrupts with optional active clock source during stop mode for periodic wakeup from stop using
  an external 32-kHz crystal
• 8-bit keyboard wakeup port
• 5-mA maximum current injection on all port pins to maintain input protection
• Available packages: 42-pin shrink dual-in-line package (SDIP) and 44-pin quad flat pack (QFP)
• Specific features of the 42-pin SDIP
Port C is only 5 bits: PTC0PTC4
• Specific features of the 44-pin QFP
Port C is 7 bits: PTC0PTC6
  1.3.1 Features of the CPU08
Features of the CPU08 include:
• Enhanced HC05 programming model
• Extensive loop control functions
• 16 addressing modes (eight more than the HC05)
• 16-bit index register and stack pointer
• Memory-to-memory data transfers
• Fast 8 * 8 multiply instruction
• Fast 16/8 divide instruction
• Binary-coded decimal (BCD) instructions
• Optimization for controller applications
• Efficient C language support


Pinout

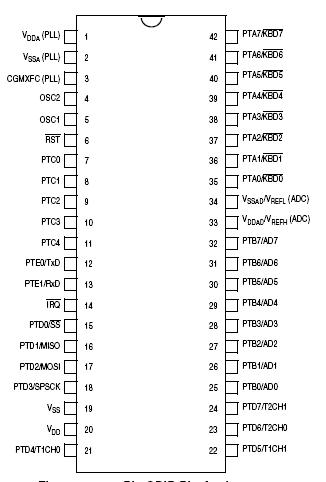

Connection Diagram


Specifications

Characteristic Symbol Value Unit
Supply Voltage VDD 0.3 to +6.0 V
Input voltage
 Vin VSS 0.3 to VDD + 0.3
 V
Maximum current per pin excluding
VDD, VSS, and PTC0PTC4		 I ± 15 V
Maximum current for pins
PTC0PTC4		 IPTC0PTC4 ± 25 mA
Storage temperature Tstg 55 to +150 °C
Maximum current out of VSS IMVSS 150 mA
Maximum current into VDD IMVDD 150 mA



Description

The MC68HC08GP32A and MC68HC08GP16A are members of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.
