Features:

Features of the MC68HC05V12 include:
• M68HC05 core with on-chip oscillator for crystal/ceramic resonator
• 12 Kbytes of user read-only memory (ROM) and 384 bytes of user
  random-access memory (RAM)
• 256 bytes of byte, block, or bulk electrically erasable
  programmable read-only memory (EEPROM)
• Byte data link controller (BDLC) module
• 5-channel, 8-bit analog-to-digital (A/D) converter
• Serial peripheral interface (SPI)
• 8-bit timer with real-time interrupt (RTI)
• 16-bit timer with one input capture and one output compare
• Two 38-frequency, 6-bit pulse width modulators (PWMs)
• Mask option selectable computer operating properly (COP) watchdog system
• 23 general-purpose input/output (I/O) pins:
Eight I/O pins with interrupt wakeup capability
Eight I/O pins multiplexed with timer, PWMs, and serial
peripheral interface (SPI) pins
Seven general-purpose I/O pins
• Five input-only pins multiplexed with A/D
• On-chip H-bridge driver circuitry to drive six gauges:
Four minor gauges
Two major gauges
• Mask option selectable low-voltage reset (LVR)
• Power-saving stop mode and wait mode instructions (mask option
  selectable STOP instruction disable)


Pinout

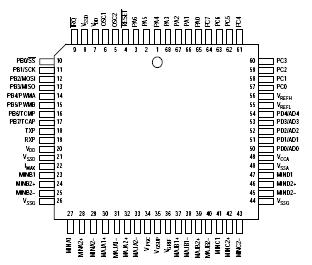

Connection Diagram


Specifications

Characteristic Symbol Value Unit
Supply Voltage VPGC, VGSUP,
and VGREF
VDD
VCCA		 0.5 to +42.0
0.5 to +7.0
VDD		 V
Input voltage
 Vin VSS 0.3 to VDD + 0.3
 V
Current drain per pin (I/O)
Current drain per pin (gauge)		 I 25
50		 mA
Storage temperature Tstg 65 to +150 °C
Write/erase cycles
(@ 10 ms write time and 40°C,
+25°C, and +85°C)

--



 10000 Cycles
Data retention EPROM, EEPROM
(40°C to + 85°C)		 - 150 Years



Description

The Motorola MC68HC05V12 microcontroller is a custom M68HC05- based MCU featuring a byte data link controller (BDLC) module and onchip power regulation for the on-chip gauge drivers. The device is available packaged in a 68-pin plastic lead chip carrier (PLCC).
