Product Details

Description



Features:

• Fully static chip design featuring the industry standard 8-bit M68HC05 core
• Pin compatible with the MC6805U3
• Power saving STOP, WAIT, and SLOW modes
• 3840 bytes of user ROM with security feature
• 192 bytes of user RAM (64 bytes for stack)
• 32 bidirectional I/O lines
• Keyboard interrupts
• 8-bit count-down timer with programmable 7-bit prescaler
• On-chip crystal oscillator, with built-in capacitor for RC option
• Second software programmable external interrupt line (IRQ2)
• Direct LED drive capability on all ports
• Programmable 20KW pull-up resistors integrated into I/O ports (1.9KW pull-up resistors integrated into PB0 and PB1)
• Internal 60KW pull-up resistor on RESET pin
• Internal 100KW pull-up resistor on IRQ pin
• Low Voltage Reset
• Available in 40-pin PDIP, 42-pin SDIP and 44-pin QFP packages
The following mask options are available:
• RC or Crystal Oscillator (see Section 2.2). The default is crystal option.
• IRQ pull-up resistor - enabled or disabled.
• Power-On Reset delay - Table 1-1 shows available options. The default value is 4096 cycles.


Pinout

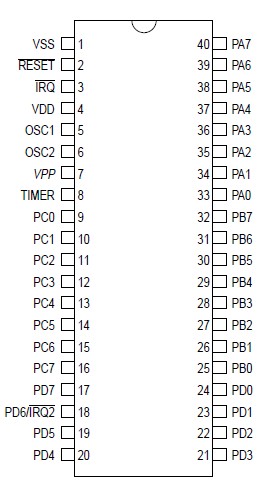

Connection Diagram


Specifications

RATINGS
SYMBOL
VALUE
UNIT
Supply Voltage
VDD
0.3 to +7.0
V
Input Voltage
VIN
VSS0.3 to VDD+0.3
V
VPP Pin
VIN
VSS0.3 to 2xVDD+0.3
V
Current Drain per pin excluding VDD and VSS
ID
25
mA
Operating Temperature
Standard
Extended
TA
TL to TH
0 to +70
40 to +85
Storage Temperature Range
TSTG
65 to +150

This device contains circuitry to protect the inputs against damage due to high static voltages or electric fields. However, it is advised that normal precautions should be taken to avoid application of any voltage higher than the maximum rated voltages to this high impedance circuit. For proper operation it is recommended that Vin and Vout be constrained to the range VSS(Vin or Vout)VDD. Reliability of operation is enhanced if unused inputs are connected to an appropriate logic voltage level (e.g. either VSS or VDD).




Description

The MC68HC05SU3A HCMOS microcontroller is a member of the M68HC05 family of low-cost single-chip microcontrollers. This 8-bit microcontroller unit (MCU) contains on-chip oscillator, CPU, RAM, ROM, I/O, and Timer. The MC68HC05SU3A is pin compatible with the MC6805U3 and is provided as a low power upgrade path for MC6805U3 applications. The low power advantage of CMOS is combined with the addition of I/O and port modifications which help eliminate external components in cost sensitive applications.
