Features:

• Four Peripheral Modules
   16-Bit Input Capture/Output Compare Timer
   Synchronous Serial I/O Port (SIOP)
   4-Channel, 8-Bit Analog-to-Digital Converter (ADC)
   Computer Operating Properly (COP) Watchdog
• 20 Bidirectional I/O Port Pins and One Input-Only Port Pin
   High Current Source Sink on PC0 and PC1
   Mask Programmable Pullups/Interrupts on PA0PA7, a
Keyboard Scan Feature
• On-Chip Oscillator with Connections for:
   Crystal
   Ceramic Resonator
   External Clock
   Resistor Capacitor (RC) Oscillator
• 2112 Bytes of ROM
   48 Bytes of Page Zero ROM
   Eight Locations for User Vectors
   ROM Security
• 128 Bytes of User RAM
• Selfcheck ROM
• Memory-Mapped Input/Output (I/O) Registers
• Fully Static Operation with No Minimum Clock Speed
• Power-Saving Stop and Wait Modes


Pinout

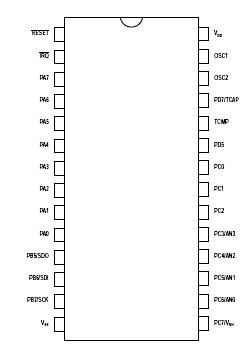

Connection Diagram


Specifications

Rating Symbol Value Unit
Supply Voltage VDD 0.3 to +7.0 V
Current Drain per Pin
(Excluding VDD and VSS)		 I 25 mA
Input Voltage VIN VSS 0.3 to VDD + 0.3 V
EPROM Programming Voltage VPP 16.75 V
Storage Temperature Range TSTG 65 to +150
