MC68HC05L28

Features: • Fully static chip design featuring the industry standard M68HC05 core• Multi-master I2C-bus† communication port• 8176 bytes of user ROM (MC68HC05L28); 8128 bytes of user EPROM (MC68HC705L28)• 240 bytes of EEPROM• 240 bytes of bootstrap ROM• 256...

product image

MC68HC05L28 Picture
See larger image
SeekIC No. : 004416365 Detail

MC68HC05L28: Features: • Fully static chip design featuring the industry standard M68HC05 core• Multi-master I2C-bus† communication port• 8176 bytes of user ROM (MC68HC05L28); 8128 bytes ...

MC68HC05L28 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC05L28
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully static chip design featuring the industry standard M68HC05 core
• Multi-master I2C-bus† communication port
• 8176 bytes of user ROM (MC68HC05L28); 8128 bytes of user EPROM (MC68HC705L28)
• 240 bytes of EEPROM
• 240 bytes of bootstrap ROM
• 256 bytes of RAM


Pinout

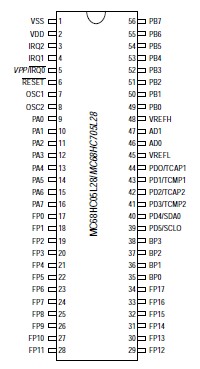

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Supply voltage(1)
VDD
0.3 to +7.0
V
Input voltage:
Normal operations
Bootloader mode (IRQ0 pin only)
VIN
VSS 0.3 to VDD+ 0.3
VSS 0.3 to 2xVDD+ 0.3
V
Current sink into port B
IB
80
mA
Operating temperature range
MC68HC05L28 (standard)
TA
TL to TH
-40 to +85
°C
Storage temperature range
TSTG
65 to +150
°C
Current drain per pin(2)
 excluding VDD and VSS
ID
25
mA

(1) All voltages are with respect to VSS.
(2) Maximum current drain per pin is for one pin at a time, limited by an external resistor.
Note: This device contains circuitry designed to protect against damage due to high electrostatic voltages or electric fields. However, it is recommended that normal precautions be taken to avoid the application of any voltages higher than those given in the maximum ratings table to this high impedance circuit. For maximum reliability all unused inputs should be tied to either VSS or VDD.




Description

The MC68HC05L28 has two modes of operation available to the user single chip and RAM bootloader. The MC68HC705L28 also has two modes of operation single chip and EPROM/RAM bootloader. Table 2-1 and Table 2-2 show the conditions required to enter each mode on the rising edge of RESET.
