MC68HC05JP6

Features: • Low-Cost, HC05 Core MCU in 20-Pin Package (MC68HC05JJ6) or 28-Pin Package (MC68HC05JP6)• 6160 Bytes of User ROM, Including 8 Bytes of Security Code and 16 Bytes of User Vectors• 224 Bytes of Low-Power User RAM (4 Transistor RAM)• 16-Bit Programmable Timer with I...

product image

MC68HC05JP6 Picture
See larger image
SeekIC No. : 004416360 Detail

MC68HC05JP6: Features: • Low-Cost, HC05 Core MCU in 20-Pin Package (MC68HC05JJ6) or 28-Pin Package (MC68HC05JP6)• 6160 Bytes of User ROM, Including 8 Bytes of Security Code and 16 Bytes of User Vecto...

MC68HC05JP6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC05JP6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-Cost, HC05 Core MCU in 20-Pin Package (MC68HC05JJ6)
  or 28-Pin Package (MC68HC05JP6)
• 6160 Bytes of User ROM, Including 8 Bytes of Security Code and
  16 Bytes of User Vectors
• 224 Bytes of Low-Power User RAM (4 Transistor RAM)
• 16-Bit Programmable Timer with Input Capture and Output Compare
• 15-Stage Core Timer, Including 8-Bit Free-Running Counter
  and 4-Stage, Selectable Real-Time Interrupt Generator
• Simple Serial Input/Output Port (SIOP) with Interrupt Capability
• Two Voltage Comparators which Can be Combined with the 16-
  Bit Programmable Timer to Create a 4-Channel, Single-Slope
  Analog-to-Digital (A/D) Converter
• Voltage Comparator 1 Output Can Drive the PB4 Port Pin Directly
  under Software Control
• 14 Input/Output (I/O) Lines (MC68HC05JJ6) or 22 I/O Lines
  (MC68HC05JP6), Including High-Source/Sink Current Capability
  on Six I/O Pins (MC68HC05JJ6) or 14 I/O Pins (MC68HC05JP6)
• Mask Option Selectable Software Programmable Pulldowns on All
  I/O Pins and Keyboard Scan Interrupt on Four I/O Pins
• Software Mask and Request Bit for IRQ Interrupt with Mask Option
  Selectable Sensitivity on IRQ Interrupt (Edge- and Level-Sensitive or Edge-Only)
• ROM Security Bytes1 to Aid in Locking Out Access to ROM Array
• Mask Option Selectable Computer Operating Properly (COP) Watchdog System
• On-Chip Temperature Measurement Diode
• Mask Option Selectable Low-Voltage Inhibit to Reset CPU in Low- Voltage Conditions
• On-Chip Oscillator with Device Selection of Crystal/Ceramic
  Resonator or RC Operation and Mask Option Selectable Shunt
  Resistor, Approximately 2 M
• Internal Oscillator for Lower-Power Operation, Approximately
  100 kHz (500 kHz Selected as a Mask Option)
• Power-Saving Stop Mode and Wait Mode Instructions (Mask
  Option Selectable STOP Conversion to Halt and Separate Mask
  Option for Fast 16-Cycle Restart)
• Illegal Address Reset
• Internal Steering Diode and Pullup Device on RESET Pin to VDD


Pinout

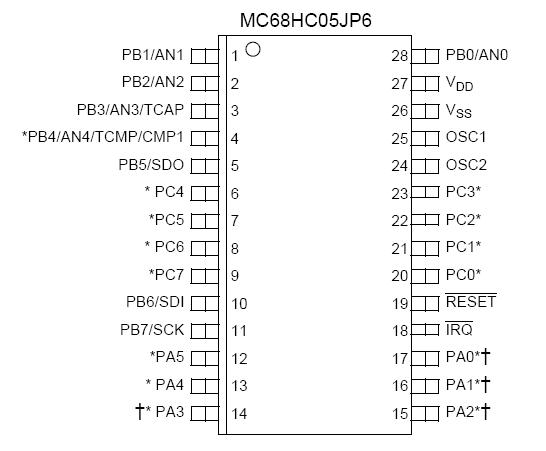

Connection Diagram




Specifications

Rating Symbol Value Unit
Supply voltage VDD 0.3 to +7.0 V
Self-Check Mode
(IRQ Pin Only		 VIN VSS 0.3 to VDD + 12
V
Current Drain Per Pin
Excluding VDD and VSS		 I 25 mA
Operating Junction Temperature

TJ



 +150 °C
Storage temperature range TSTG 65 to +150 °C
