MC68HC05E6

Features: • Fully static design featuring the industry-standard M68HC05 core• On-chip oscillator with crystal or ceramic resonator clock options• 6000 bytes of user ROM plus 16 bytes of user vectors (MC68HC05E6); 6144 bytes of user EPROM plus 16 bytes of user vectors (MC68HC705E6...

product image

MC68HC05E6 Picture
See larger image
SeekIC No. : 004416354 Detail

MC68HC05E6: Features: • Fully static design featuring the industry-standard M68HC05 core• On-chip oscillator with crystal or ceramic resonator clock options• 6000 bytes of user ROM plus 16 byt...

MC68HC05E6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68HC05E6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fully static design featuring the industry-standard M68HC05 core
• On-chip oscillator with crystal or ceramic resonator clock options
• 6000 bytes of user ROM
  plus 16 bytes of user vectors
  (MC68HC05E6);
  6144 bytes of user EPROM plus 16 bytes of user
  vectors (MC68HC705E6)
• 240 bytes of bootloader ROM (MC68HC705E6)
• 160 bytes of EEPROM
• 128 bytes of RAM
• Single supply voltage (no external voltage required for EEPROM programming)
• 4-channel, 8-bit A/D converter
• 16-bit programmable timer with input capture and output compare
• 15-stage multipurpose core timer with overflow, watchdog and
real-time interrupt
• 32 programmable bidirectional I/O lines and four input-only lines
  including eight fixed wire pull-ups (port A), eight fixed wire
  pull-downs (port B) and 16 software selectable pull-ups (ports C and D)
• Keyboard interrupt facility available on all pins of port C
• Low voltage indicator (LVI)
• Power saving STOP and WAIT modes
• Available in 44-pin QFP and 28-pin SOIC packages; four of the
  ports are not fully bonded out in the 28-pin package (see Figure 1)



Pinout

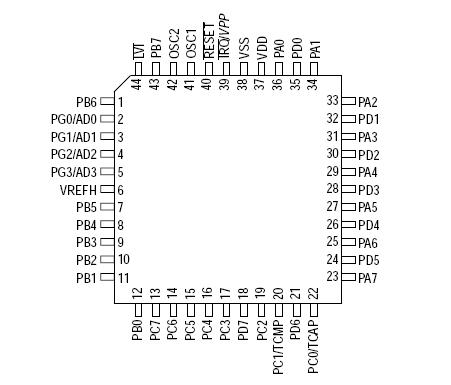

Connection Diagram


Specifications

Rating Symbol Value Unit
Supply voltage(1) VDD 0.3 to +7. V
Input voltage: VIN VSS 0.3 to VDD + 0.3
 V
Input voltage:
Bootloader mode (VPP MC68HC705E6)		 VIN VSS 0.3 to VDD + 0.3 V
Operating temperature range (VDD = 5V±10%)
MC68HC05E6 / MC68HC705E6
MC68HC05EC / MC68HC705E6C
MC68HC05EV / MC68HC705E6V
MC68HC05EM / MC68HC705E6M		 TA TL to TH
0 to 70
40 to +85
40 to +105
40 to +125		 °C
Operating temperature range (VDD = 3.3V±10%)
MC68HC05E6 / MC68HC705E6
MC68HC05EC / MC68HC705E6C
MC68HC05EV / MC68HC705E6V
MC68HC05EM / MC68HC705E6M

TA



 TL to TH
0 to 70
40 to +85
40 to +105
40 to +125		 °C
Storage temperature range TSTG 65 to +150 °C
Current drain per pin (excluding VDD and VSS)(2) ID 25 mA
