Features: • Modular Architecture• Low-Power Central Processing Unit (CPU32L)- Virtual memory implementation- Loop mode of instruction execution- Improved exception handling for controller applications- Table lookup and interpolate instruction- CPU-only LPSTOP operation/normal MCU LPSTO...

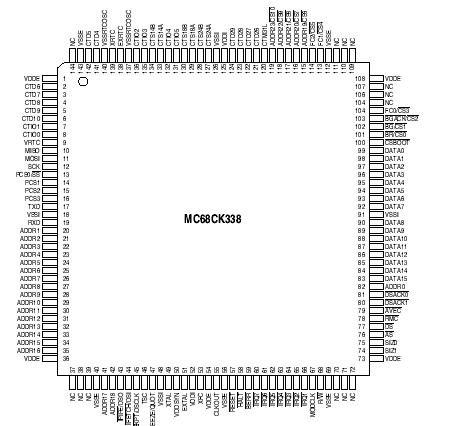

MC68CK338: Features: • Modular Architecture• Low-Power Central Processing Unit (CPU32L)- Virtual memory implementation- Loop mode of instruction execution- Improved exception handling for controlle...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Num | Rating |
Symbol |
Value |
Unit |
1 | Supply Voltage1, 2, 3 |
VDD |
0.3 to + 6.5 |
V |
2 | Input Voltage1, 2, 3, 4 |
VIn |
0.3 to + 6.5 |
V |
3 | Instantaneous Maximum Current Single pin limit (applies to all pins)1, 3, 5, 6 |
ID |
25 |
mA |
4 | Operating Maximum Current Digital Input Disruptive Current5, 6, 7 VSS 0.3 VIN VDD + 0.3 |
IID |
500 to + 500 |
A |
5 | Operating Temperature Range |
TA |
TL to TH 40 to + 85 |
|
6 | Storage Temperature Range |
TSTG |
55 to + 150 |
NOTES:
1. Permanent damage can occur if maximum ratings are exceeded. Exposure to voltages or currents in excess of recommended values affects device reliability. Device modules may not operate normally while being exposed to electrical extremes.
2. Although sections of the device contain circuitry to protect against damage from high static voltages or electrical fields, take normal precautions to avoid exposure to voltages higher than maximum-rated voltages.
3. This parameter is periodically sampled rather than 100% tested.
4. All pins except TSC.
5. All functional non-supply pins are internally clamped to VSS for transitions below VSS. All functional pins except EXTAL and XFC are internally clamped to VDD for transitions below VDD.
6. Power supply must maintain regulation within operating VDD range during instantaneous and operating maximum current conditions.
7. Total input current for all digital input-only and all digital input/output pins must not exceed 10 mA. Exceeding this limit can cause disruption of normal operation.
