MC68194

Features: • Implements IEEE 802.4 single channel, phasecoherent Frequency Shift Keying (FSK) physical layer including receiver blanking.• Provides physical layer management including local loopback mode, transmitter enable, and reset.• Supports data rates from 1 to 10 Mbps. IEEE ...

product image

MC68194 Picture
See larger image
SeekIC No. : 004416306 Detail

MC68194: Features: • Implements IEEE 802.4 single channel, phasecoherent Frequency Shift Keying (FSK) physical layer including receiver blanking.• Provides physical layer management including loc...

MC68194 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC68194
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Implements IEEE 802.4 single channel, phasecoherent Frequency Shift Keying (FSK) physical layer
   including  receiver blanking.
• Provides physical layer management including local loopback mode, transmitter enable, and reset.
• Supports data rates from 1 to 10 Mbps. IEEE 802.4 standard uses 5 or 10 Mbps.
• Interfaces via standard serial interface to MC68824 Token Bus Controller.
• Crystal controlled transmit clock.
• Recovery of clocked data through phaselocked loop.
• RC controlled Jabber Inhibit Timer.
• Single +5.0 volt power supply.
• Available in 52lead Cerquad package.


Pinout

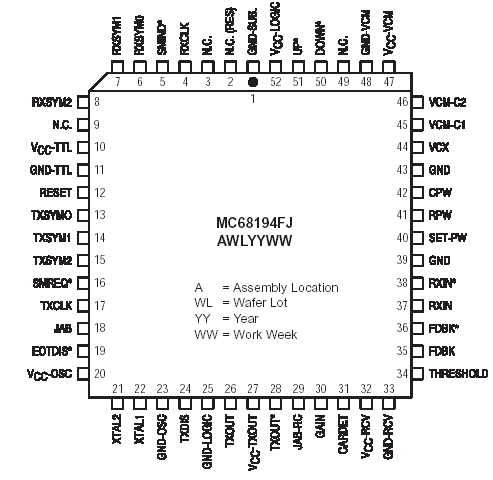

Connection Diagram


Specifications

Characteristic
Symbol
 Value
Unit
Supply Voltage
VCC
0 to +7.0
Vdc
TTL Input Voltage
VIN
0 to +5.5
Vdc
TTL Output Voltage (Applied to output HIGH)
VOUT
0 to +5.5
Vdc
ECL Output Source Current
Iout
50
mAdc
Storage Temperature
Cerquad
Tstg
55 to +165
Junction Temperature
Cerquad
TJ
165



Description

The bipolar LSI MC68194 Carrier Band Modem (CBM) when combined with the MC68824 Token Bus Controller provides an IEEE 802.4 single channel, phasecoherent carrier band Local Area Network (LAN) connection. The CBM performs the Physical Layer function including symbol encoding/decoding, signal transmission and reception, and physical management. Features  of MC68194 include:
