Product Details

Description

Pinout

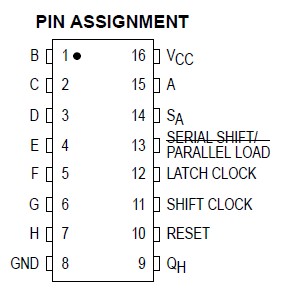

Connection Diagram

Specifications

SymbolL	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	0.5 to + 7.0	V
V_in	DC Input Voltage (Referenced to GND)	1.5 to V_CC + 1.5	V
V_out	DC Output Voltage (Referenced to GND)	0.5 to V_CC + 0.5	V
I_in	DC Input Current, per Pin	± 20	mA
I_out	DC Output Current, per Pin	± 25	mA
I_CC	DC Supply Current, V_CC and GND Pins	± 50	mA
P_D	Power Dissipation in Still Air, Plastic or Ceramic DIP† SOIC Package†	750 500	mW
T_stg	Storage Temperature	65 to + 150
T_L	Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) (Ceramic DIP)	260 300
