MC54HCT374A

Features: • Output Drive Capability: 15 LSTTL Loads• TTL/NMOSCompatible Input Levels• Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 4.5 to 5.5 V• Low Input Current: 1.0 mA• In Compliance with the Requirements Defined by JEDEC Standa...

product image

MC54HCT374A Picture
See larger image
SeekIC No. : 004416249 Detail

MC54HCT374A: Features: • Output Drive Capability: 15 LSTTL Loads• TTL/NMOSCompatible Input Levels• Outputs Directly Interface to CMOS, NMOS, and TTL• Operating Voltage Range: 4.5 to 5.5 V...

MC54HCT374A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC54HCT374A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Output Drive Capability: 15 LSTTL Loads
• TTL/NMOSCompatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 mA
• In Compliance with the Requirements Defined by JEDEC Standard No. 7A
• Chip Complexity: 276 FETs or 69 Equivalent Gates
• Improvements over HCT374
- Improved Propagation Delays
- 50% Lower Quiescent Power
- Improved Input Noise and Latchup Immunity


Pinout

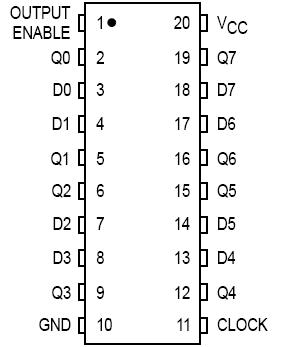

Connection Diagram


Specifications

Symbol Parameter Value Unit
vcc DC Supply Voltage (Referenced to GND) 0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
VOUT DC Output Voltage (Referenced to GND) 0.5 to VCC + 0.5 V
LIN DC Input Current, per Pin ±20 mA
IOUT DC Onput Current, per Pin ±35 mA
ICC DC Supply Current Per Supply Pin ±75 mA
PD Power dissipation in still air piastic DIP
SOIC package
750
500		 mW
TSTG Storage Temperature 65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)		 260 °C
Functional operation should be restricted to the Recommended Operating Conditions.
†Derating - Plastic DIP: 10 mW/C from 65 to 125C
Ceramic DIP: 10 mW/C from 100 to 125C
SOIC Package: 7 mW/C from 65 to 125C
SSOP or TSSOP Package: 6.1 mW/C from 65 to 125C
For high frequency or heavy load considerations, see Chapter 2 of the Motorola HighSpeed CMOS Data Book (DL129/D).


Description

The MC54/74HCT374A may be used as a level converter for interfacing TTL or NMOS outputs to HighSpeed CMOS inputs. The HCT374A is identical in pinout to the LS374.


Data meeting the setup and hold time is clocked to the outputs with the rising edge of Clock. The Output of MC54HCT374A Enable does not affect the state of the flipflops, but when Output of MC54HCT374A Enable is high, the outputs are forced to the highimpedance state. Thus, data may be stored even when the outputs are not enabled.

The HCT374A is identical in function to the HCT574A, which has the input pins on the opposite side of the package from the output pins. This device is similar in function to the HCT534A, which has inverting outputs.
