Product Details

Description

Pinout

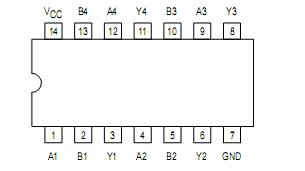

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	DC Supply Voltage (Referenced to GND)	-0.5 to + 7.0	V
V_IN	DC Input Voltage (Referenced to GND)	-0.5 to V_CC+ 0.5	V
V_out	DC Output Voltage (Referenced to GND)	-0.5 to V_CC+ 0.5	V
I_in	DC Input Current, per Pin	±20	mA
I_out	DC Output Current, per Pin	±25	mA
I_CC	DC Supply Current, VCC and GND Pins	±50	mA
P_D	Power Dissipation in Still Air,Plastic or Ceramic DIP+ SOIC Package+ TSSOP Package+	750 500 450	mW
T_stg	Storage Temperature	- 65 to + 150
T_L	Lead Temperature, 1 mm from Case for 10 Seconds Plastic DIP, SOIC or TSSOP Package Ceramic DIP	260 300
