MC54F352

Features:

• Inverted Version of the F153
• Separate Enables for Each Multiplexer
• Input Clamp Diode Limits High-Speed Termination Effects

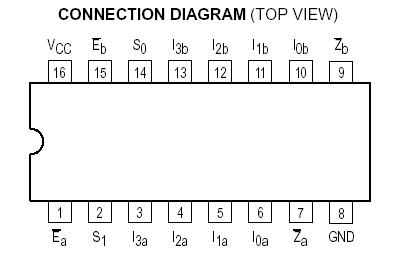

Pinout




Description

   The MC54/74F352 is a very high speed dual 4-input multiplexer with common Select inputs and individual Enable inputs for each section. MC54/74F352 can select two bits of data from four sources. The two buffered outputs present data in the inverted (complementary) form. The F352 is the functional equivalent of the F153 except with inverted outputs.
