Features:

• HCS12 Core
- 16-bit HCS12 CPU
Upward compatible with M68HC11 instruction set
Interrupt stacking and programmer's model identical to M68HC11
20-bit ALU
Instruction queue
Enhanced indexed addressing
- MEBI (Multiplexed External Bus Interface)
- MMC (Module Mapping Control)
- INT (Interrupt control)
- BKP (Breakpoints)
- BDM (Background Debug Module)
• CRG (Clock and Reset Generator)
- Choice of low current Colpitts oscillator or standard Pierce oscillator
- PLL
- COP watchdog
- Real time interrupt
- Clock monitor
• 8-bit and 4-bit ports with interrupt functionality
- Digital filtering
- Programmable rising and falling edge trigger
• Memory Options:
- 128K Byte or 64K Byte ROM
- 8K Byte RAM
• Two 8-channel Analog-to-Digital Converters
- 10-bit resolution
- External conversion trigger capability
• Two 1M bit per second, CAN 2.0 A, B software compatible modules
- Five receive and three transmit buffers
- Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit
- Four separate interrupt channels for Rx, Tx, error and wake-up
- Low-pass filter wake-up function
- Loop-back for self test operation
• Enhanced Capture Timer
- 16-bit main counter with 7-bit prescaler
- 8 programmable input capture or output compare channels
- Four 8-bit or two 16-bit pulse accumulators
• 8 PWM channels
- Programmable period and duty cycle
- 8-bit 8-channel or 16-bit 4-channel
- Separate control for each pulse width and duty cycle
- Center-aligned or left-aligned outputs
- Programmable clock select logic with a wide range of frequencies
- Fast emergency shutdown input
- Usable as interrupt inputs
• Serial interfaces
- Two asynchronous Serial Communications Interfaces (SCI)
- Two Synchronous Serial Peripheral Interface (SPI)
• Inter-IC Bus (IIC)
- Compatible with I2C Bus standard
- Multi-master operation
- Software programmable for one of 256 different serial clock frequencies
• Internal 2.5V Regulator
- Supports an input voltage range from 2.97V to 5.5V
- Low power mode capability
- Includes low voltage reset (LVR) circuitry
- Includes low voltage interrupt (LVI) circuitry
• 112-Pin LQFP and 80-Pin QFP package options
- I/O lines with 5V input and drive capability- 5V A/D converter inputs
- Operation at 66 MHz equivalent to 33 MHz Bus Speed (single-chip modes only)
- Operation at 50 MHz equivalent to 25 MHz Bus Speed (expanded modes)
• Development support
- Single-wire background debug™ mode (BDM)
- On-chip hardware breakpoints



Pinout

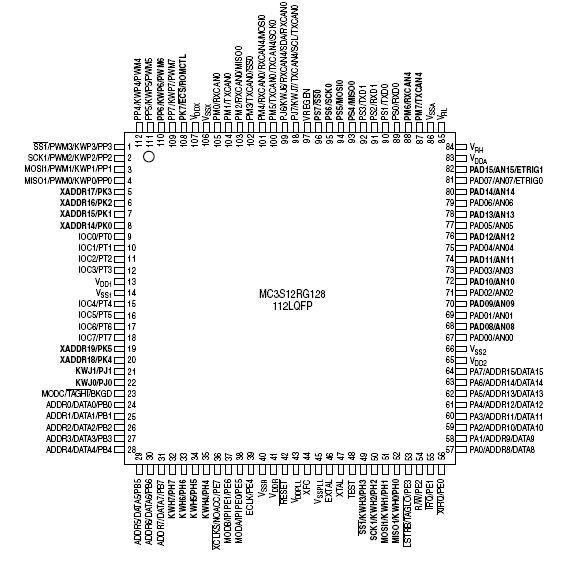

  Connection Diagram




Specifications

Num Rating Symbol Min Max Unit
1 I/O, Regulator and Analog Supply Voltage VDD35 −0.3 6.5 V
2 Internal Logic Supply Voltage 2 VDD −0.3 3.0 V
3 PLL Supply Voltage 2 VDDPLL −0.3 3.0 V
4 Voltage difference VDDX to VDDR and VDDA VDDX −0.3 0.3 V
5 Voltage difference VSSX to VSSR and VSSA VSSX −0.3 0.3 V
6 Digital I/O Input Voltage VIN −0.3 6.5 V
7 Analog Reference VRH, VRL −0.3 6.5 V
8 XFC, EXTAL, XTAL inputs VILV −0.3 3.0 V
9 TEST input (for test purposes only, tie to VSS) VTEST −0.3 6.5 V
10 Instantaneous Maximum Current
Single pin limit for all digital I/O pins 3
ID −25 25 mA
11 Instantaneous Maximum Current
Single pin limit for XFC, EXTAL, XTAL4
IDL −25 25 mA
15 Storage Temperature Range Tstg 65 155 °C



Description

The MC3S12RG128 microcontroller unit (MCU) is a 16-bit device composed of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to 128K bytes of ROM, 8K bytes of RAM, two asynchronous serial communications interfaces (SCI), two serial peripheral interfaces (SPI), IIC-bus, an enhanced capture timer (ECT), two 8-channel 10-bit analog-to-digital converters (ADC), an eight-channel pulse-width modulator (PWM), and up to two CAN 2.0 A, B software compatible modules (MSCAN12). There is no integrated EEPROM on the MC3S12RG128. The MC3S12RG128 has full 16-bit data paths throughout. However, the external bus can operate in an 8-bit narrow mode so single 8-bit wide memory can be interfaced for lower cost systems. The inclusion of a PLL circuit allows power consumption and performance to be adjusted to suit operational requirements.
