MC34161

Features: • Unique Mode Select Input Allows Channel Programming• Over, Under, and Window Voltage Detection• Positive and Negative Voltage Detection• Fully Functional at 2.0 V for Positive Voltage Sensing and 4.0 V for Negative Voltage Sensing• Pinned Out 2.54 V Refere...

product image

MC34161 Picture
See larger image
SeekIC No. : 004415908 Detail

MC34161: Features: • Unique Mode Select Input Allows Channel Programming• Over, Under, and Window Voltage Detection• Positive and Negative Voltage Detection• Fully Functional at 2.0 V...

MC34161 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC34161
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Unique Mode Select Input Allows Channel Programming
• Over, Under, and Window Voltage Detection
• Positive and Negative Voltage Detection
• Fully Functional at 2.0 V for Positive Voltage Sensing and 4.0 V for Negative Voltage Sensing
• Pinned Out 2.54 V Reference with Current Limit Protection
• Low Standby Current
• Open Collector Outputs for Enhanced Device Flexibility


Application

Applications include direct monitoring of positive and negative voltages used in appliance, automotive, consumer, and industrial equipment




Pinout

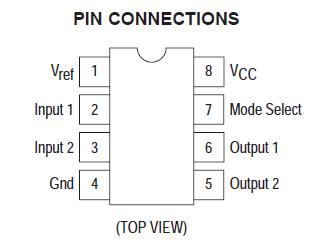

Connection Diagram


Specifications

Rating Symbol Value Unit
Power Supply Input Voltage VCC 40 V
Comparator Input Voltage Range Vin 1.0 to +40 V
Comparator Output Sink Current (Pins 5 and 6) (Note 1.) ISink 20 mA
Comparator Output Voltage Vout 40 V
Power Dissipation and Thermal Characteristics (Note 1.)
P Suffix, Plastic Package, Case 626
Maximum Power Dissipation @ TA = 70°C
Thermal Resistance, JunctiontoAir
D Suffix, Plastic Package, Case 751
Maximum Power Dissipation @ TA = 70°C
Thermal Resistance, JunctiontoAir		 PD
RqJA
PD
RqJA		 800
100
450
178		 mW
°C/W
mW
°C/W
Operating Junction Temperature TJ +150 °C
Operating Ambient Temperature (Note 3.)
MC34161
MC33161		 TA 0 to +70
40 to +85		 °C
Storage Temperature Range Tstg 55 to +150 °C



Description

The MC34161/MC33161 are universal voltage monitors intended for use in a wide variety of voltage sensing applications. MC34161/MC33161 offer the circuit designer an economical solution for positive and negative voltage detection. The circuit consists of two comparator channels each with hysteresis, a unique Mode Select Input for channel programming, a pinned out 2.54 V reference, and two open collector outputs capable of sinking in excess of 10 mA. Each comparator channel can be configured as either inverting or noninverting by the Mode Select Input. This allows over, under, and window detection of positive and negative voltages. The minimum supply voltage needed for MC34161/MC33161 to be fully functional is 2.0 V for positive voltage sensing and 4.0 V for negative voltage sensing.
