MC33882

Features: • Outputs Clamped for Switching Inductive Loads• Very Low Operational Bias Currents (< 2.0 mA)• CMOS Input Logic Compatible with 5.0 V Logic Levels• Load Dump Robust (60 V Transient at VPWR on OUT0OUT5)• Daisy Chain Operation of Multiple Devices Possible&...

product image

MC33882 Picture
See larger image
SeekIC No. : 004415814 Detail

MC33882: Features: • Outputs Clamped for Switching Inductive Loads• Very Low Operational Bias Currents (< 2.0 mA)• CMOS Input Logic Compatible with 5.0 V Logic Levels• Load Dump Ro...

MC33882 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC33882
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Outputs Clamped for Switching Inductive Loads
• Very Low Operational Bias Currents (< 2.0 mA)
• CMOS Input Logic Compatible with 5.0 V Logic Levels
• Load Dump Robust (60 V Transient at VPWR on OUT0OUT5)
• Daisy Chain Operation of Multiple Devices Possible
• Switch Outputs Can Be Paralleled for Higher Currents
• RDS(ON) of 0.4 per Output (25°C) at 13 V VPWR
• SPI Operation Guaranteed to 2.0 MHz




Pinout

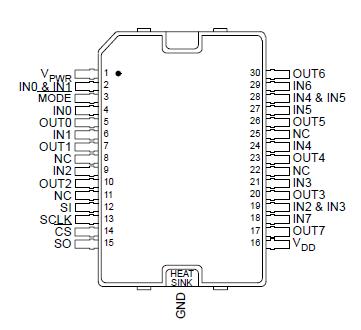

Connection Diagram




Specifications

Rating
Symbol
Value
Limit
ELECTRICAL RATINGS
Load Supply Voltage
Normal Operation (Steady-State)
Transient Survival (Note 1)
VPWR(SS)
VPWR(T)
25
-1.5 to 60
V
Logic Supply Voltage (Note 2)
VDD
-0.3 to 7.0
V
Input Terminal Voltage (Note 3)
VIN
-0.3 to VDD + 0.3
V
Output Clamp Voltage (OUT0 to OUT5) (Note 4)
20 mA = IO = 0.2 A
VO(OFF)
48 to 64
V
Output Self-Limit Current
OUT0 to OUT5
OUT6 and OUT7
IO(LIM)
3.0 to 6.0
0.05 to 0.15
A
ESD Voltage (HSOP and QFN)
Human Body Model (Note 5)
Machine Model (Note 6)
VESD1
VESD2

±2000
±200
V
Output Clamp Energy (Note 7)
OUT0 to OUT5: Single Pulse at 1.5 A, TJ = 150°C
OUT6 and OUT7: Single Pulse at 0.45 A, TJ = 150°C
ECLAMP
100
50
mJ
Maximum Operating Frequency (SPI) SO (Note 8)
fOF
3.2
MHz
THERMAL RATINGS
Storage Temperature
TSTG
-55 to 150
°C
Operating Junction Temperature
TJ
-40 to 150
°C
Terminal Soldering Temperature
HSOP
QFN
TSOLDER
220
240
°C





Description

MC33882 SMART SIX-OUTPUT SWITCH (0.3 Ohm RDSon) WITH SPI AND PARALLEL INPUT CONTROL
