Product Details

Description

Features:

` Designed to Operate 5.5 V < VPWR < 26.5 V
` 16-Bit SPI for Control and Fault Reporting, 3.3 V / 5.0 V Compatible
` Outputs Are Current Limited (0.6 A to 1.2 A) to Drive Incandescent Lamps
` Output Voltage Clamp, + 45 V (Low Side) and - 20 V (High Side) During Inductive Switching
` On/Off Control of Open Load Detect Current (LED Application)
` Internal Reverse Battery Protection on VPWR
` Loss of Ground or Supply Will Not Energize Loads or Damage IC
` Maximum 5.0 A IPWR Standby Current at 13 V VPWR
` RDS(ON) of 0.75 at 25°C Typical
` Short Circuit Detect and Current Limit with Automatic Retry
` Independent Overtemperature Protection
` Pb-Free Packaging Designated by Suffix Code EK

Pinout

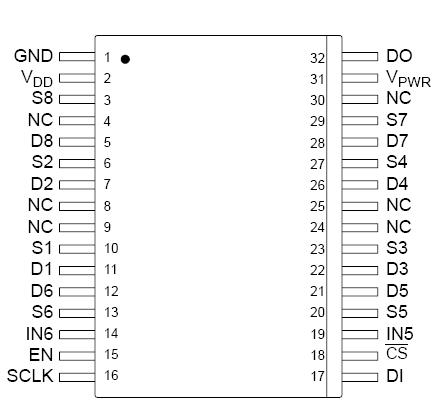

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
Electrical Ratings
VDD Supply Voltage ⁽¹⁾	V_DD	- 0.3 to 7.0	V_DC
CS, DI, DO, SCLK, IN5, IN6, and EN ⁽¹⁾	-	- 0.3 to 7.0	V_DC
VPWR Supply Voltage ⁽¹⁾	V_PWR	-16 to 40	V_DC
Output Clamp Energy (²⁾	E_CLAMP	50	mJ
ESD Voltage Human Body Model ⁽³⁾ Machine Model ⁽⁴⁾	V_ESD1 V_ESD2	± 450 ±100	V
Thermal Ratings
Operating Temperature Ambient Junction Case	T_A T_J T_C	- 40 to 125 - 40 to 150 - 40 to 125	°C
Storage Temperature	T_STG	- 55 to 150	°C
Power Dissipation ⁽⁵⁾	P_D	1.7	°C
Thermal Resistance Junction to Ambient Between the Die and the Exposed Die Pad	R_JAR_JC	71 1.2	°C/W
Peak Package Reflow Temperature During Solder Mounting ⁽⁶⁾	T_SOLDER	245	°C

Notes
1.Exceeding these limits may cause malfunction or permanent damage to the device.
2.Maximum output clamp energy capability at 150°C junction temperature using single non-repetitive pulse method with I = 350 mA.
3.ESD1 testing is performed in accordance with the Human Body Model (C_ZAP = 100 pF, R_ZAP = 1500 ).
4.ESD2 testing is performed in accordance with the Machine Model (C_ZAP = 200 pF, R_ZAP = 0 ).
5.Maximum power dissipation at T_A = 25°C with no heatsink used.
6.Terminal soldering temperature limit is for 10 seconds maximum duration. Not designed for immersion soldering. Exceeding these limits may cause malfunction or permanent damage to the device.

Description

The 33879 device is an 8-output hardware-configurable, high-side / low-side switch with 16-bit serial input control. Two of the outputs may be controlled directly via microprocessor for PWM applications. The 33879 incorporates SMARTMOS technology, with CMOS logic, bipolar/MOS analog circuitry, and DMOS power MOSFETs. The 33879 controls various inductive, incandescent, or LED loads by directly interfacing with a microcontroller. The circuit's innovative monitoring and protection features of 33879 include very low standby currents, cascade fault reporting, internal + 45 V clamp voltage for low-side configuration, - 20 V high-side configuration, output-specific diagnostics, and independent overtemperature protection.
