MC33797

Features: ·Four-Channel High-Side and Low-Side 2.0 A FET Switches·Externally Adjustable FET Current Limiting·Adjustable Current Limit Range: 0.8 A to 2.0 A·Individual Channel Current Limit Detection with Timing Duration Measurement, Communicated via SPI·8-Bit SPI for Diagnostics and FET Switch Act...

product image

MC33797 Picture
See larger image
SeekIC No. : 004415807 Detail

MC33797: Features: ·Four-Channel High-Side and Low-Side 2.0 A FET Switches·Externally Adjustable FET Current Limiting·Adjustable Current Limit Range: 0.8 A to 2.0 A·Individual Channel Current Limit Detection...

MC33797 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC33797
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Four-Channel High-Side and Low-Side 2.0 A FET Switches
·Externally Adjustable FET Current Limiting
·Adjustable Current Limit Range: 0.8 A to 2.0 A
·Individual Channel Current Limit Detection with Timing Duration Measurement, Communicated via SPI
·8-Bit SPI for Diagnostics and FET Switch Activation
·Diagnostics for High-Side Safing Sensor Status
·Resistance and Voltage Diagnostics for Squibs
·Squib Driver IC Capability to Be Used for Cross-Coupled Driver Firing Application (Allows High- and Low-Side FET Switches to Be Located on Separate Squib Driver ICs)
·Pb-Free Packaging designated by Suffix Code EK

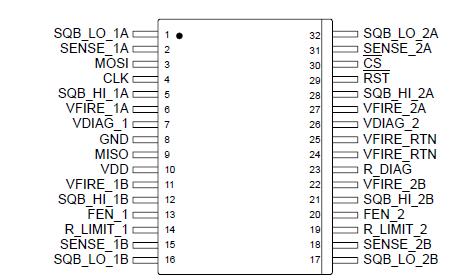

Pinout

Connection Diagram




Specifications

Rating
Symbol
Value
Unit
INPUT ELECTRICAL RATINGS
Voltage on VDD
VDD
7.0
V
Voltage on Input terminals CS, CLK, D1, D0, FEN_1, FEN_2, RESETB,
R_DIAG, R_LIMIT_X
VI
-0.3 to VDD + 0.3
V
Voltage on Squib terminals SQB_HI_XX, SQB_LO_XX, SENSE_XX
VVFIRE_XX
-0.3 to VVFIRE + 0.3
V
Voltage on terminals VDIAG_X, VFIRE_XX
VDIAG_X
-0.3 to 35
V
ESD Voltage
Human Body Model (2)
Machine Model (3)
VESD1
VESD2
±2000
±200
V
Maximum VVFIRE with Pulsed Output (4), (5)
RSQUIB = 2.0 , tON = 0.8 ms, ISQUIB = 2.24 A
RSQUIB = 1.2 , tON = 0.8 ms, ISQUIB = 2.24 A
RSQUIB = 0.1 , tON = 0.60 ms, ISQUIB = 2.24 A
VFPULSE
35
25
25
V
THERMAL RATINGS
Storage Temperature
TSTG
155
°C
Junction Temperature Ambient
Continuous (Prior to Squib Deployment)
t 5.0 ms (Post-Squib Deployment)
TA
TJCONT
TJDPYD
85
100
300
°C
Lead Soldering Temperature (6)
TSOLDER
245
°C
Thermal Resistance (Junction-to-Ambient)
RJ-A
74
°C/W
OPERATING RATINGS (7)
Low-Side FET Fire Conditions
RSQUIB tON ISQUIB VSQUIBHI
2.0 2.6 ms 3.0 A 16 V
1.2 2.6 ms 3.0 A 16 V
0.1 2.6 ms 3.0 A 16 V





Description

MC33797 Four Channel Squib Driver IC
