MC33274ADTBR2G

Operational Amplifiers - Op Amps ANA HI-SPD/S.S. QUAD O.A

product image

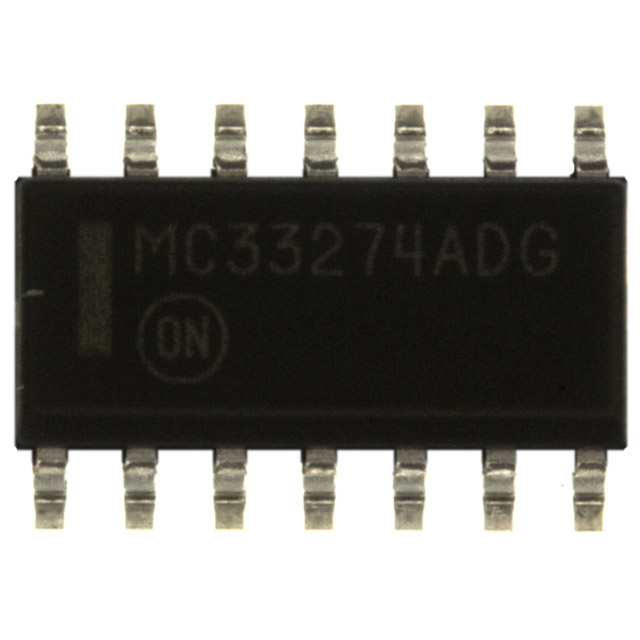

MC33274ADTBR2G Picture
SeekIC No. : 00300654 Detail

MC33274ADTBR2G: Operational Amplifiers - Op Amps ANA HI-SPD/S.S. QUAD O.A

floor Price/Ceiling Price

Part Number:
MC33274ADTBR2G
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 4 Common Mode Rejection Ratio (Min) : 80 dB
Input Offset Voltage : 2 mV at 5 V Input Bias Current (Max) : 650 nA
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V Mounting Style : SMD/SMT
Package / Case : TSSOP-14 Slew Rate : 10 V/us at +/- 15 V
Shutdown : No Maximum Operating Temperature : + 85 C
Packaging : Reel

Description

Output Current :
Mounting Style : SMD/SMT
Packaging : Reel
Common Mode Rejection Ratio (Min) : 80 dB
Package / Case : TSSOP-14
Number of Channels : 4
Shutdown : No
Maximum Operating Temperature : + 85 C
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Input Offset Voltage : 2 mV at 5 V
Input Bias Current (Max) : 650 nA
Slew Rate : 10 V/us at +/- 15 V


Parameters:

Technical/Catalog InformationMC33274ADTBR2G
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
PackagingTape & Reel (TR)
Amplifier TypeGeneral Purpose
Number of Circuits4 - Quad
Package / Case14-TSSOP
Slew Rate10 V/s
Gain Bandwidth Product24MHz
Current - Supply2.15mA
Current - Output/Channel37mA
Voltage - Supply, Single/Dual (±)3 V ~ 36 V, ±1.5 V ~ 18 V
Output Type-
-3db Bandwidth-
Current - Input Bias0.3A
Operating Temperature-40°C ~ 85°C
Voltage - Input Offset100V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC33274ADTBR2G
MC33274ADTBR2G
