Product Details

Description

Pinout

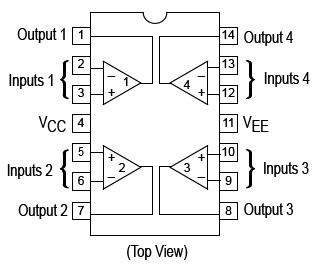

Connection Diagram

Specifications

Rating	Symbol	Value	Unit
Supply Voltage	V_CC/V_EE	22	V
Input Differential Voltage Range	V_IDR	(Note 1)	V
Input Voltage Range	V_IR	(Note 1)	V
Output Short Circuit Duration (Note 2)	t_SC	Indefinite	sec
Operating Ambient Temperature Range	T_A	40 to +85	°C
Operating Junction Temperature	T_J	150	°C
Storage Temperature Range	T_stg	65 to +150	°C

NOTES: 1. Either or both input voltages must not exceed the magnitude of VCC or VEE.
2. Power dissipation must be considered to ensure maximum junction temperature (TJ)
is not exceeded.
