MC3303PW, US $ .32-.53 , Texas Instruments, MC3303PW DataSheet download, circuit diagram from SeekIC.com

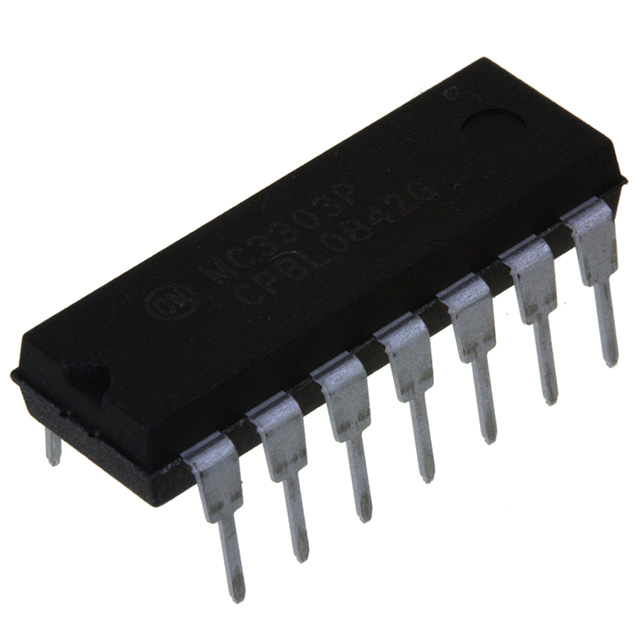

See larger image

SeekIC No. : 00290102 Detail

MC3303PW: Operational Amplifiers - Op Amps Quadruple Low-Power Op Amp

MC3303PW Data Sheet

US $ .32~.53 / Piece | Get Latest Price

Part Number:: MC3303PW
Mfg:: Texas Instruments
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.53
$.41
$.36
$.32

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MC3302/4 evaluate
Features: • Full Differential Inputs• MCP3302: 2 Differential or 4 Single ended Inputs...
MC33023 evaluate
Features: • 50 ns Propagation Delay to Output• High Current Totem Pole Output• W...
MC33023DW evaluate
Current Mode PWM Controllers Single Ended Voltage

Product Details

Quick Details

Number of Channels :	4	Common Mode Rejection Ratio (Min) :	70 dB
Input Offset Voltage :	10 mV	Input Bias Current (Max) :	500 nA
Operating Supply Voltage :	30 V	Mounting Style :	SMD/SMT
Package / Case :	TSSOP-14	Slew Rate :	0.6 V/us
Shutdown :	No	Maximum Operating Temperature :	+ 85 C
Packaging :	Tube

Description

Output Current :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : TSSOP-14
Number of Channels : 4
Shutdown : No
Common Mode Rejection Ratio (Min) : 70 dB
Slew Rate : 0.6 V/us
Maximum Operating Temperature : + 85 C
Input Offset Voltage : 10 mV
Input Bias Current (Max) : 500 nA
Operating Supply Voltage : 30 V

Parameters:

Technical/Catalog Information	MC3303PW
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	4 - Quad
Package / Case	14-TSSOP
Slew Rate	0.6 V/s
Gain Bandwidth Product	1MHz
Current - Supply	2.8mA
Current - Output / Channel	30mA
Voltage - Supply, Single/Dual (±)	5 V ~ 30 V, ±2.5 V ~ 15 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	200nA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	2000V
Drawing Number	296; 4040064; PW; 8, 14, 16, 20, 24, 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC3303PW MC3303PW
