MC14LC5004

PinoutSpecifications Symbol Parameter Value Unit VDD DC Supply Voltage 0.5 to + 6.5 V Vin Input Voltage, Din, and Data Clock - 0.5 to 15 V Vin osc Input Voltage, OSCin of Master - 0.5 to VDD + 0.5 V Iin DC Input Current, per Pin ± 10 ...

product image

MC14LC5004 Picture
See larger image
SeekIC No. : 004415564 Detail

MC14LC5004: PinoutSpecifications Symbol Parameter Value Unit VDD DC Supply Voltage 0.5 to + 6.5 V Vin Input Voltage, Din, and Data Clock - 0.5 to 15 V Vin osc Input...

MC14LC5004 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC14LC5004
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

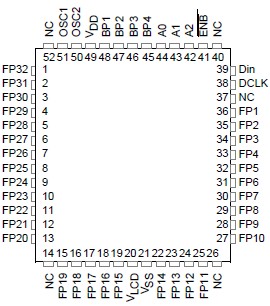

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 DC Supply Voltage
0.5 to + 6.5
V
Vin
 Input Voltage, Din, and Data Clock
- 0.5 to 15
V
Vin osc
 Input Voltage, OSCin of Master
- 0.5 to VDD + 0.5
V
Iin
 DC Input Current, per Pin
± 10
mA
TA
 Operating Temperature Range
- 40 to + 85
°C
Tstg
 Storage Temperature Range
- 65 to + 150
°C



Description

The MC14LC5003/5004 are 128-segment, multiplexed-by-four LCD Drivers. The two devices are functionally the same except for their data input protocols. The MC14LC5003 uses a serial interface data input protocol. The device may be interfaced to the MC68HCXX product families using a minimal amount of software (see example). The MC14LC5004 has a IIC interface and has essentially the same protocol, except that the device sends an acknowledge bit back to the transmitter after each eight-bit byte is received. MC14LC5004 also has a "read mode", whereby data sent to the device may be retrieved via the IIC bus.
