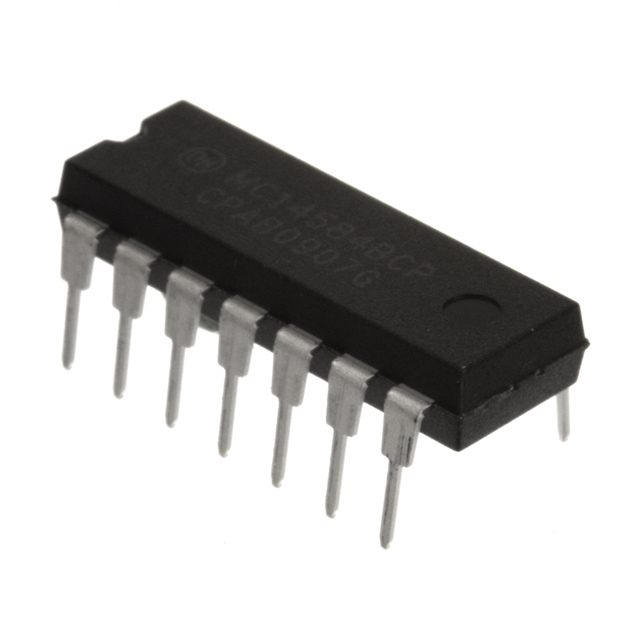

MC14584BD

Minimum Operating Temperature :
Operating Temperature Range :
Maximum Operating Temperature : + 125 C
Number of Circuits : 6
Logic Type : CMOS
Package / Case : SOIC-14
Packaging : Tube
High Level Output Current : - 4.2 mA
Low Level Output Current : 4.2 mA
Propagation Delay Time : 250 ns, 100 ns, 80 ns
Supply Voltage - Max : 18 V
Supply Voltage - Min : 3 V
Logic Family : MC145


Parameters:

Technical/Catalog Information	MC14584BD
Vendor	ON Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	Inverter with Schmitt Trigger
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	1
Current - Output High, Low	3.4mA, 3.4mA
Supply Voltage	3 V ~ 18 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	3 V ~ 18 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MC14584BD MC14584BD
