MC145745

Features: • Conforms to ITU V.21 and V.23 Recommendations• DTMF Generator and Receiver for all 16 Standard Digits• Capable of Driving 0 dBm into a 600 W Load (VCC = 5 V)• Automatic Gain Control (AGC) Amplifier for the DTMF Receiver• CallProgress Tone Detector• F...

product image

MC145745 Picture
See larger image
SeekIC No. : 004415523 Detail

MC145745: Features: • Conforms to ITU V.21 and V.23 Recommendations• DTMF Generator and Receiver for all 16 Standard Digits• Capable of Driving 0 dBm into a 600 W Load (VCC = 5 V)• Aut...

MC145745 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC145745
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Conforms to ITU V.21 and V.23 Recommendations
• DTMF Generator and Receiver for all 16 Standard Digits
• Capable of Driving 0 dBm into a 600 W Load (VCC = 5 V)
• Automatic Gain Control (AGC) Amplifier for the DTMF Receiver
• CallProgress Tone Detector
• FourWire Serial Data Interface (SCP)
• Programmable Transmission and Carrier Detection Levels
• FSK/DTMF Analog Loopback SelfTest Function
• Crystal Oscillator (3.579545 MHz) and Half Divider Circuit (7.159090 MHz) for External Inputs
• Operates in the Voltage Range of 3.3 5.5 V
• Power Down Mode (ICC < 1 mA)


Pinout

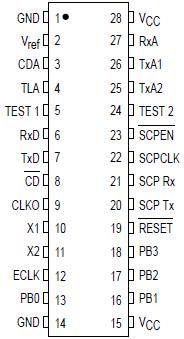

Connection Diagram


Specifications

Symbol Characteristics Value Unit
VCC DC Supply Voltage 0.5 to + 7.0 V
VIN DC Input Voltage 0.5 to VCC + 0.5 V
VOUT DC Output Voltage 0.5 to VCC + 0.5 V
IIN DC Input Current ±20 mA
IOUT DC Output Current ±50 mA
PD Power Dissipation 500 °C
Tstg Storage Temperature Range 65 to + 150 °C



Description

The MC145745 is a selectable modem chip compatible with ITU V.21 (300 baud full duplex asynchronous) and V.23 mode 2 (1200 baud half duplex asynchronous). The builtin differential line driver has the capability of driving 0 dBm into a 600 W load with a 5 V single power supply. MC145745 also includes a DTMF generator, DTMF receiver, callprogress tone detector, answer tone generator, and a receive timing control circuit.

Besides having a clock generator with a crystal oscillator connected to it, the MC145745 has a divider circuit to which input of a double frequency clock is possible from external sources, such as from a microcontroller unit (MCU). The serial control port (SCP) permits the MCU to access internal registers for exercising the builtin features.

A low consumption device, the MC145745 integrates various functions in a small package. This modem IC is best suited for telemeter and other applications of this type
