MC145583

PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage 0.5 to + 18 V VIR Input Voltage 0.5 to VDD + 0.5 V I DC Current per Pin ± 100 mA TA Operating Temperature Range 40 to + 85 °C Tstg Storage Temperature Range 85 to + 150 °C PD Powe...

product image

MC145583 Picture
See larger image
SeekIC No. : 004415506 Detail

MC145583: PinoutSpecifications Symbol Parameter Value Unit VCC DC Supply Voltage 0.5 to + 18 V VIR Input Voltage 0.5 to VDD + 0.5 V I DC Current per Pin ± 100 mA TA Operating...

MC145583 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC145583
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

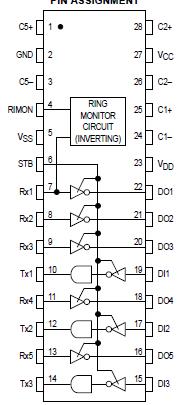

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC DC Supply Voltage 0.5 to + 18 V
VIR Input Voltage 0.5 to VDD + 0.5 V
I DC Current per Pin ± 100 mA
TA Operating Temperature Range 40 to + 85 °C
Tstg Storage Temperature Range 85 to + 150
 °C
PD Power Dissipation 1 W



Description

The MC145583 is a CMOS transceiver composed of three drivers and five receivers that fulfills the electrical specifications of EIA232E, EIA562, and CCITT V.28 while operating from a single + 3.3 or + 5.0 V power supply. MC145583 is a highperformance, lowpower consumption device that is equipped with a standby function.

A voltage tripler and inverter converts the + 3.3 V to ± 8.8 V, or a voltage doubler and inverter converts the + 5.0 V to ± 8.8 V. MC145583 is accomplished through an onchip 40 kHz oscillator and five inexpensive external capacitors.
