Product Details

Description

Features:

•Low OFF Leakage Current

•Matched Channel Resistance

•Low Quiescent Power Consumption

•Low Crosstalk Between Channels

•Wide Operating Voltage Range: 3 to 18 V

•Low Noise

•Pin for Pin Replacement for CD4067B and CD4097B

Pinout

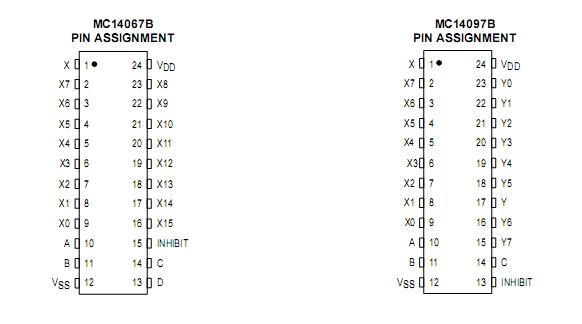

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_DD	DC Supply Voltage	0.5 to +18.0	V
V_in, V_out	Input or OutputVoltage (DCorTransient)	0.5 to VDD + 0.5	V
l_in	Input Current (DC or Transient), per Control Pin	±10	mA
I_sw	Switch Through Current	±25	mA
P_D	Power Dissipation, per Package†	500	mW
T_stg	Storage Temperature	65 to + 150	°C
T_L	Lead Temperature (8Second Soldering)	260	°C

Description

The MC14067 and MC14097 m ultiplexers/demultiplexers are digitally controlled analog switches featuring low ON resistance and very low eakage current. MC14067 and MC14097 can be used in either digital or analog applications.

The MC14067 is a 16channel multiplexer/demultiplexer with an inhibit and four binary control inputs A, B, C, and D. These control inputs select 1of16 channels by turning ONthe appropriate analog switch (see MC14067 truth table.)

The MC14097 is a differential 8channel multiplexer/demultiplexer with an inhibit and three binary control inputs A, B, and C. These control inputs select 1 of 8 pairs of channels by turning ON the appropriate analog switches (see MC14097 truth table).
