MC10SX1401

* Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.

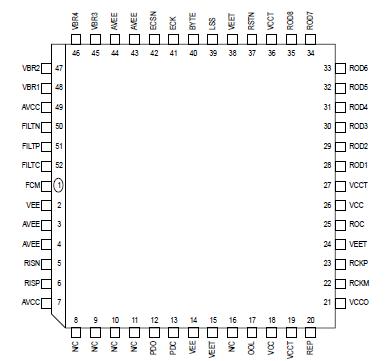

The MC10SX1401 receiver (Rx) chip is an integrated deserialization SONET OC3 (155.52 Mb/s) and OC12 (622.08 Mb/s) interface device.

MC10SX1401 performs the data and clock recovery and serialtoparallel conversion functions in conformance with SONET/SDH transmission standards.

High performance and low power of MC10SX1401 is achieved with MOSAIC VE, Motorola's most advanced highperformance silicon Bipolar process. A companion serialization (Tx) chip, the SX1405, is also available.
• Recovers a 155.52/622.08 MHz internal clock from an OC3/OC12 data stream
• Samples, quantizes and demultiplexes the input signal into a parallel TTL data stream
• Generates an EVEN parity bit with the demultiplexed data
• Provides a 155.52 MHz differential PECL timing reference clock
• No external input reference clock is required
• Detects the peak amplitude of the Rx signal and generates a proportional DC voltage
• Provides PLL Frequency Control Monitor and OutofLock Indicator
• Selectable eight or four bit parallel interface
• Single supply operation (+5V)
