MC10SX1190

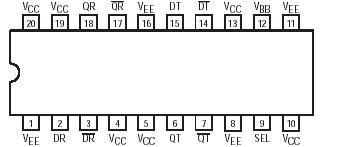

The MC10SX1190 is a differential receiver, differential transmitter specifically designed to drive coaxial cables. MC10SX1190 incorporates the output cable drive capability of the MC10EP89 Coaxial Cable Driver with additional circuitry to multiplex the output cable drive source between the cable receiver or the local transmitter inputs. The multiplexer control circuitry is TTL compatible for ease of operation.

The MC10SX1190 is useful as a bypass element for Fibre Channel-Arbitrated Loop (FC-AL) or Serial Storage Architecture (SSA) applications, to create loop style interconnects with fault
tolerant, active switches at each device node. MC10SX1190 is particularly useful for back panel applications where small size is desirable.

The EP89 style drive circuitry of MC10SX1190 produces swings approximately 70% larger than a standard PECL output. When driving a coaxial cable, proper termination is required at both ends of the line to minimize reflections. The 1.4V output swings allow for proper termination at both ends of the cable, while maintaining the required swing of MC10SX1190 at the receiving end of the cable. Because of the larger output swings, the QT, QT outputs are terminated into the thevenin equivalent of 50W to V_CC  3.0V instead of 50W to V_CC 2.0V.
