MC10H334

Features:

•Propagation Delay, 1.6 ns Typical DatatoOutput
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

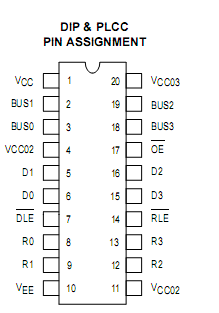

Pinout




Specifications

MAXIMUM RATINGS
Characteristic	Symbol	Rating	Unit
Power Supply (VCC= 0)	VEE	8.0 to 0	Vdc
Input Voltage (VCC= 0)	VI	0 to VEE	Vdc
Output Current- Continuous - Surge	Iout	50 100	mA
Operating Temperature Range	TA	0 to +75	°C
StorageTemperatureRange-Plastic - Ceramic	Tstg	55 to+150 55 to+165	°C °C

ELECTRICAL CHARACTERISTICS (VEE= 5.2 V ±5%) (See Note)
Characteristic	Symbol	0°		25°		75°		Unit
		Min	Ma	Min	Max	Min	Max
Power Supply Current	IE	-	161	-	161	-	161	mA
Input Current High Pins 5,6,15,16 Pins 7,14 Pin 17	IinH	- - -	397 460 520	- - -	273 297 357	- - -	273 297 357	µA
Input Current Low	IinL	0.5	-	0.5	-	0.3	-	µA
High Output Voltage	VOH	1.02	0.84	0.98	0.81	0.92	0.735	Vdc
Low Output Voltage	VOL	1.95	1.63	1.95	1.63	1.95	1.60	Vdc
High Input Voltage	VIH	1.17	0.84	1.13	0.81	1.07	0.735	Vdc
Low Input Voltage	VIL	1.95	1.48	1.95	1.48	1.95	1.45	Vdc

AC PARAMETERS
Propagation Delay DatatoBus Output DLE toBus Output OE toBus Output BustoR0 RLE toR0 DatatoReceiver R0	tpd	0.5 1.0 0.5 0.5 0.5 1.0	2.5 2.7 2.5 1.9 2.1 3.8	0.5 1.0 0.5 0.5 0.5 1.0	2.5 2.7 2.5 1.9 2.1 3.8	0.5 1.0 0.5 0.5 0.5 1.0	2.5 2.7 2.5 1.9 2.1 3.8	ns
Rise Time	tr	0.5	2.2	0.5	2.2	0.5	2.2	ns
Fall Time	tf	0.5	2.2	0.5	2.2	0.5	2.2	ns

Description

The MC10H334 is a Quad Bus Driver/Receiver with transmit and receiver latches.  When disabled, (OE= high) the bus outputs will fall to 2.0 V.  Data to be transmitted or received is passed through its respective latch when therespective latch enable (DLE and RLE) is at a low level.  Information of MC10H334 is latched on the positive transition of DLE and RLE.  The parameters specified are with 25 Ω loading on the bus drivers and 50 Ω loads on the receivers.
