MC10H211

Features:

•Propagation Delay, 1.0 ns Typical
•Power Dissipation, 160 mW Typical
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

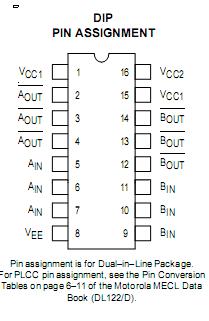

Pinout




Specifications

MAXIMUM RATINGS
Characteristic	Symbol	Rating	Unit
Power Supply (VCC= 0)	VEE	8.0 to 0	Vdc
Input Voltage (VCC= 0)	VI	0 toVEE	Vdc
Output Current- Continuous- Surge	Iout	50 100	mA
Operating Temperature Range	TA	0 to +75	°C
Storage Temperature Range- Plastic- Ceramic	Tstg	55 to +150 55 to +165	°C °C

ELECTRICAL CHARACTERISTICS (VEE= 5.2 V ±5%) (See Note)
Characteristic	Symbol	0°		25°		75°		Unit
		Min	Max	Min	Max	Min	Max
Power Supply Current	IE	-	42	-	38	-	42	mA
Input Current High	IinH	-	720	-	450	-	450	µA
Input Current Low	IinL	0.5	-	0.5	-	0.3	-	µA
High Output Voltage	VOH	1.02	0.84	0.98	0.81	0.92	0.735	Vdc
Low Output Voltage	VOL	1.95	1.63	1.95	1.63	1.95	1.60	Vdc
High Input Voltage	VIH	1.17	0.84	1.13	0.81	1.07	0.735	Vdc
Low Input Voltage	VIL	1.95	1.48	1.95	1.48	1.95	1.45	Vdc

AC PARAMETERS
Propagation Delay	tpd	0.7	1.6	0.7	1.6	0.7	1.7	ns
Rise Time	tr	0.9	2.0	0.9	2.2	0.9	2.4	ns
Fall Time	tf	0.9	2.0	0.9	2.2	0.9	2.4	ns

Description

  The MC10H211 is designed to drive up to six transmission lines simultaneously. The multiple outputs of this device also allow the wire "OR"ing of several levels of gating for minimization of gate and package count.

  The ability to control three parallel lines with minimum propagation delay from a single point makes the MC10H211 particularly useful in clock distributionapplications where minimum clock skew is desired.
