MC10H174FN

Number of Bits :
Mounting Style : SMD/SMT
Packaging : Tube
Product : Decoders, Encoders, Multiplexers & Demultiplexers
Number of Lines (Input / Output) : 4 / 1
Logic Family : MC10H
Supply Voltage - Max : - 5.46 V
Supply Voltage - Min : - 4.94 V
Maximum Operating Temperature : + 75 C
Propagation Delay Time : 2.5 ns at - 5.2 V
Package / Case : PLCC-20


Features:

* Propagation Delay, 1.5 ns Typical
* Power Dissipation, 305 mW Typical
* Improved Noise Margin 150 mV (over operating voltage and temperature range)
* Voltage Compensated
* MECL 10KCompatible

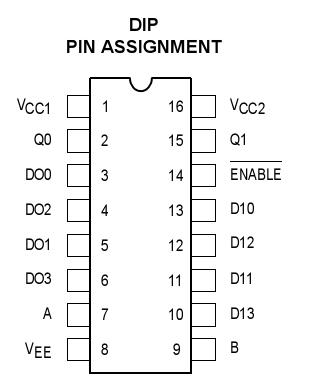

Pinout




Specifications

Characteristic	Symbol	Rating	Unit
Power Supply (VCC = 0)	VEE	8.0 to 0	Vdc
Input Voltage (VCC = 0)	VI	0 to V EE	Vdc
Output Current- Continuous - Surge	Iout	50 100	mA
Operating Temperature Range	TA	0 to +75	°C
Storage Temperature Range- Plastic - Ceramic	Tstg	55 to +150 55 to +165	°C °C
