MC10H121

Features:

•Propagation Delay, 1.0 ns Typical
•Power Dissipation 100 mW/Gate Typical (same as MECL 10K)
•Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
•Voltage Compensated
•MECL 10KCompatible

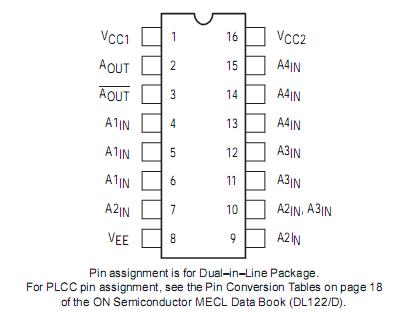

Pinout




Specifications

Symbol	Characteristic	Rating	Unit
VEE	Power Supply (VCC= 0)	8.0 to 0	Vdc
VI	Input Voltage (VCC= 0)	0 to VEE	Vdc
Iout	Output Current- Continuous                         - Surge	50 100	mA
TA	Operating Temperature Range	0 to +75
Tstg	Storage Temperature Range- Plastic                                              - Ceramic	55 to +150 55 to +165

Description

The MC10H121 is a basic logic building block providing the simultaneous ORAND/ORANDInvert function, useful in data control and digital multiplexing applications. MC10H121 is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power supply current.
