MC10EP56

Features: • 350ps Typical Propagation Delays• Maximum Frequency > 4.0GHz• 20Lead SOIC Wide Package• PECL mode: 3.0V to 5.5V VCC with VEE = 0V• ECL mode: 0V VCC with VEE = 3.0V to 5.5V• Separate and Common Select• Internal Input Resistors: Pulldown on D,...

product image

MC10EP56 Picture
See larger image
SeekIC No. : 004415041 Detail

MC10EP56: Features: • 350ps Typical Propagation Delays• Maximum Frequency > 4.0GHz• 20Lead SOIC Wide Package• PECL mode: 3.0V to 5.5V VCC with VEE = 0V• ECL mode: 0V VCC with ...

MC10EP56 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC10EP56
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 350ps Typical Propagation Delays
• Maximum Frequency > 4.0GHz
• 20Lead SOIC Wide Package
• PECL mode: 3.0V to 5.5V VCC with VEE = 0V
• ECL mode: 0V VCC with VEE = 3.0V to 5.5V
• Separate and Common Select
• Internal Input Resistors: Pulldown on D, Pulldown and Pullup on D
• Q Output will default LOW with inputs open or at VEE
• ESD Protection: >4KV HBM, >200V MM
• VBB Outputs
• New Differential Input Common Mode Range
• Moisture Sensitivity Level 1, Indefinite Time Out of Drypack
• Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 140 devices

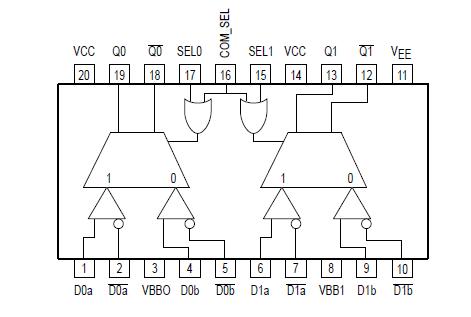

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VEE Power Supply (VCC = 0V) 6.0 to 0 VDC
VCC Power Supply (VEE = 0V) 6.0 to 0 VDC
VI Input Voltage (VCC = 0V, VI not more negative than VEE) 6.0 to 0 VDC
VI Input Voltage (VEE = 0V, VI not more positive than VCC) 6.0 to 0 VDC
Iout Output Current Continuous
Surge		 50
100		 VDC
IBB VBB Sink/Source Current ± 0.5 mA
TA Operating Temperature Range 40 to +85 mA
Tstg Storage Temperature 65 to +150
JA Thermal Resistance (JunctiontoAmbient) Still Air
500lfpm		 90
60		 /W
JC Thermal Resistance (JunctiontoCase) 30 to 35 /W
Tsol Solder Temperature (<2 to 3 Seconds: 245 desired) 265

* Maximum Ratings are those values beyond which damage to the device may occur. Use for inputs of same package only.




Description

The MC10EP56 is a dual, fully differential 2:1. The differential data path makes the device ideal for multiplexing low skew clock or other skew sensitive signals. Multiple VBB pins are provided to ease AC coupling of input signals. If MC10EP56 is used, the VBB output should be bypassed to ground with a 0.01F capacitor.

The MC10EP56 features both individual and common select inputs to address both data path and random logic  plications.
