Features:

•450 ps Typical Propagation Delay
•Maximum Frequency > 3.0 GHz Typical
•Asynchronous Master Reset
•20 ps Skew Within Device, 35 ps Skew Device−To−Device
•PECL Mode Operating Range: VCC= 3.0 V to 5.5 VWith VEE=0 V
•NECL Mode Operating Range: VCC= 0 VWith VEE= −3.0 V to −5.5 V
•Open Input Default State
•Safety Clamp on Inputs
•=b−Free Packages are Available*


Pinout

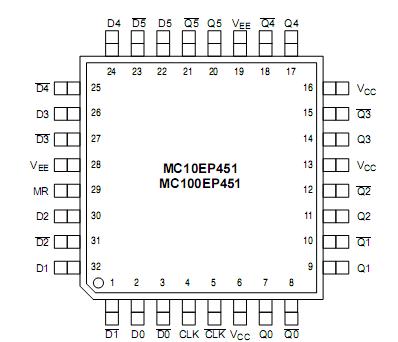

Connection Diagram


Specifications

Symbol
Parameter
Condition 1
Condition 2
Rating
Unit
VCC
PECL Mode Power Supply
VEE= 0 V

6
V
VEE
NECL Mode Power Supply

VCC= 0 V

−6
V
VI PECL Mode Input Voltage
NECL Mode Input Voltage		 VEE= 0 V
VCC= 0 V

VIVCC

VIVEE

 6
−6		 V
V
IOUT Output Current Continuous
Surge		   50
100		 mA
mA
TA Operating Temperature Range     −40 to +85
Tsty Storage Temperature Range     −65 to +150
JA Thermal Resistance (Junction to Ambient) 0 lfpm
500 lfpm		 LQFP−32
LQFP−32		 80
55		 /W
/W
JC Thermal Resistance (Junction to Case) Standard Board
LQFP−32		 12 to 17 /W
Tsol Wave Solder <2 to 3 sec @ 248°C   265



Description

The MC10/100EP451 is a 6−bit fully differential register withcommon clock and single−ended Master Reset (MR). It is ideal forvery high frequency applications where a registered data path isnecessary.

All inputs of MC10/100EP451 have a 75 k pulldown resistor internally. Differentialinputs have an override clamp. Unused differential register inputs canbe left open and will default LOW. When the differential inputs areforced to < VEE + 1.2 V, the clamp will override and force the output toa default state. When in the default state, and since the flip−flop is edgetriggered, the output reaches a determined, but not predicted, validstate.

The positive transition of CLK (pin 4) will latch the registers.Master Reset (MR) HIGH will asynchronously reset all registersforcing Q outputs to go LOW.

The 100 Series contains temperature compensation.
