MC10EP35DR2

Number of Circuits : 1
Mounting Style : SMD/SMT
Packaging : Reel
Supply Voltage - Max : 5.5 V
Input Type : Single-Ended
Maximum Operating Temperature : + 85 C
Output Type : Differential
Polarity : Inverting, Non-Inverting
Logic Family : ECL
Logic Type : ECL
Propagation Delay Time : 0.49 ns
High Level Output Current : - 50 mA
Low Level Output Current : 50 mA
Package / Case : SOIC-8 Narrow


Features:

• 300ps Propagation Delay
• High Bandwidth to 3 GHz Typical
• High Bandwidth Output Transistors
• PECL mode: 3.0V to 5.5V VCC with VEE = 0V
• ECL mode: 0V VCC with VEE = 3.0V to 5.5V
• 75k
Internal Input Pulldown Resistors
• Q Output will default LOW with inputs open or at VEE
• ESD Protection: >4KV HBM, >200V MM
• Moisture Sensitivity Level 1, Indefinite Time Out of Drypack.For Additional Information, See Application Note AND8003/D
• Flammability Rating: UL94 code V0 @ 1/8", Oxygen Index 28 to 34
• Transistor Count = 77 devices

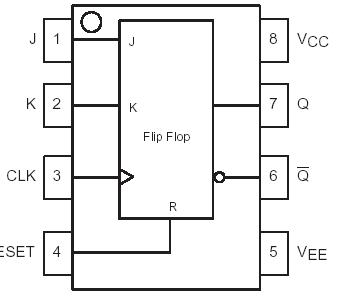

Pinout




Specifications

Parameter	Value	SYMBOL	UNIT
Power Supply (VCC = 0V)	6.0 to 0	VEE	VDC
Power Supply (VEE = 0V)	6.0 to 0	VCC	VDC
Input Voltage (VCC = 0V, VI not more negative than VEE)	6.0 to 0	VI	VDC
Input Voltage (VEE = 0V, VI not more positive than VCC)	6.0 to 0	VI	VDC
Output Current Continuous Surge	50 100	Iout	mA
Operating Temperature Range	40 to +85	TA	°C
Storage Temperature	65 to +150	TSTG	°C
Thermal Resistance (JunctiontoAmbient) Still Air 500lfpm	190 130	PD	°C/W
Thermal Resistance (JunctiontoCase)	41 to 44 ± 5%	TSTG	°C/W
Solder Temperature (<2 to 3 Seconds: 245°C desired)	265	VEBO	°C

Description

The MC10EP35 is a higher speed/low voltage version of the EL35 JK flip flop. The J/K data enters the master portion of the flip flop when the clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock. The reset pin of MC10EP35 is asynchronous and is activated with a logic HIGH.
